Alumina Ceramic Mosaic Tiles
Product Description
Alumina ceramic mosaic is a wear-resistant ceramic material made of alumina as the main raw material, through high-pressure molding and high-temperature sintering. Its main component is alumina, and rare metal oxides are added as flux, and it is sintered at a high temperature of 1,700 degrees.

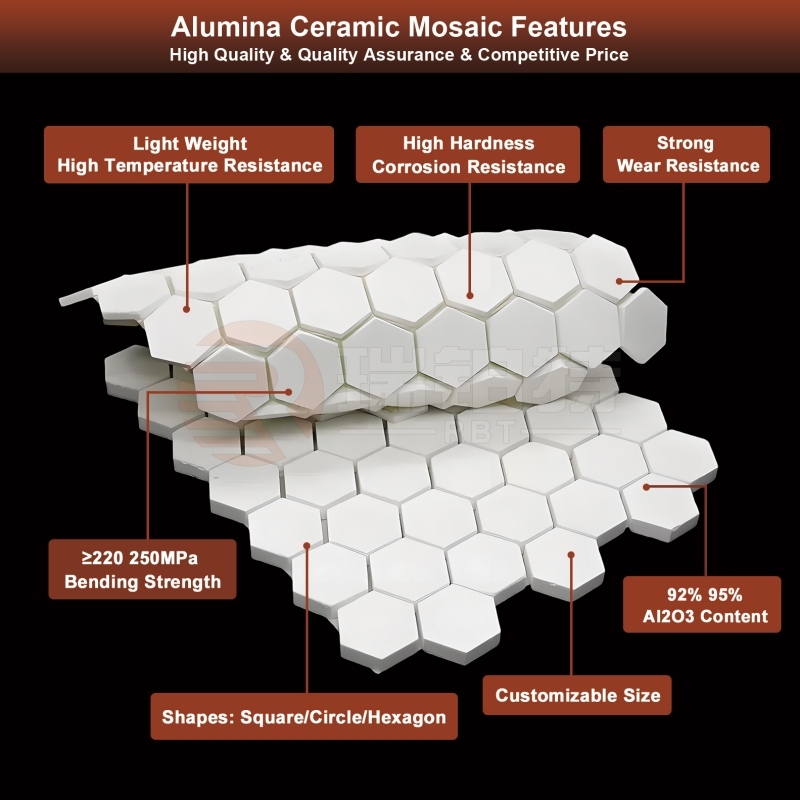

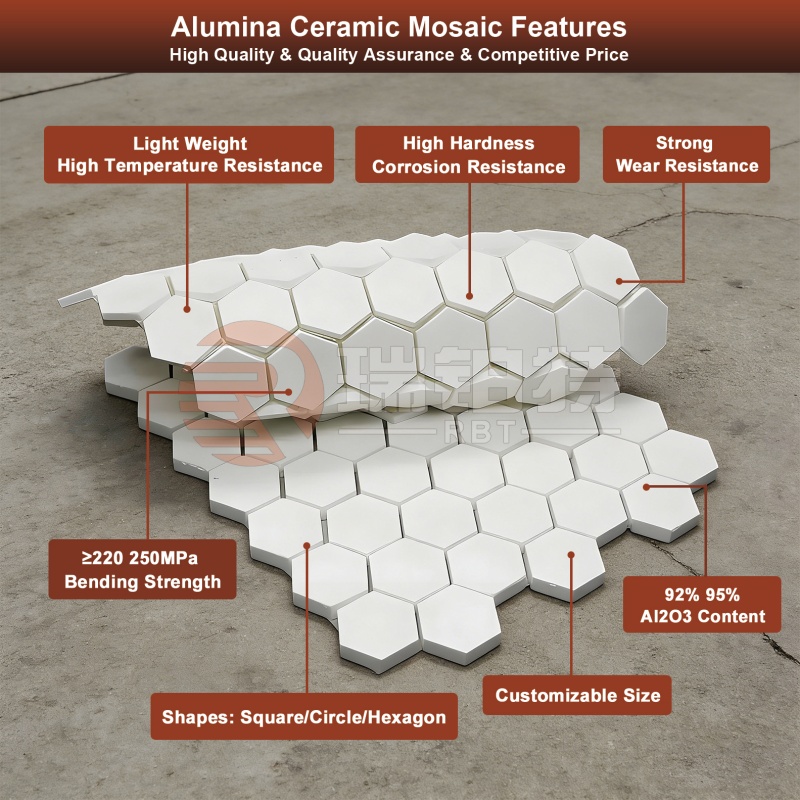

Features
High hardness: The Rockwell hardness of alumina ceramic mosaic reaches HRA80-90, second only to diamond, far exceeding the wear resistance of wear-resistant steel and stainless steel.
Strong wear resistance: Its wear resistance is equivalent to 266 times that of manganese steel and 171.5 times that of high-chromium cast iron, and it can perform well in high-frequency use occasions.
Corrosion resistance: It can effectively resist the erosion of highly corrosive media such as acids, alkalis, and salts, and maintain structural integrity and stable performance.
High temperature resistance: It can remain stable in high temperature environments without deformation or melting.
Light weight: The density is 3.6g/cm³, which is only half of that of steel, which can reduce the load on equipment.
Product Index
|
Series
|
RBT92
|
RBT95
|
|
Al2O3(%)
|
≥92
|
≥95
|
|
Color
|
White
|
White
|
|
Bending Strength(Mpa)
|
≥220
|
≥250
|
|
Hardness (Mohs)
|
9
|
9
|
|
Compressive Strength (Mpa)
|
≥1050
|
≥1300
|
|
Fracture Toughness(MPam1/2)
|
≥3.70
|
≥3.80
|
|
Rockwell Hardness(HRA)
|
≥82
|
≥85
|
|
Wear Volume(cm3)
|
≤0.25
|
≤0.2
|
|
Bulk Density(g/cm3)
|
≥3.6
|
≥3.65
|

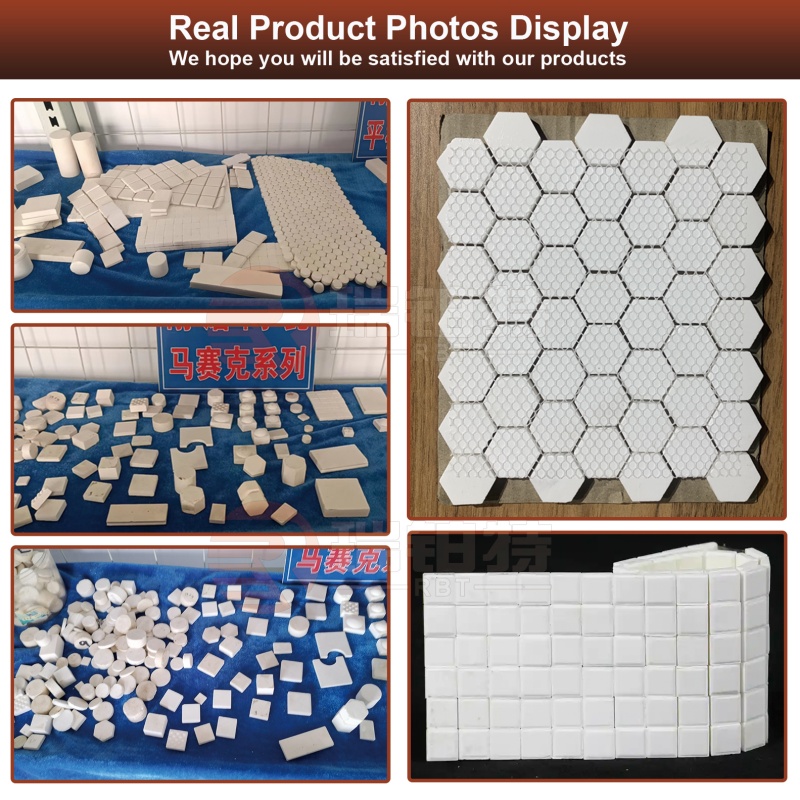

Common Sizes
|
Item
|
Length (mm)
|
Width (mm)
|
Thickness (mm)
|
|
Square Tiles
|
10-24
|
10-24
|
3-20
|
|
Hexagon Tiles
|
12-20
|
12-20
|
3-15
|
The above specifications are commonly used by our company. If you need other specifications, please consult customer service. The company can provide customization.

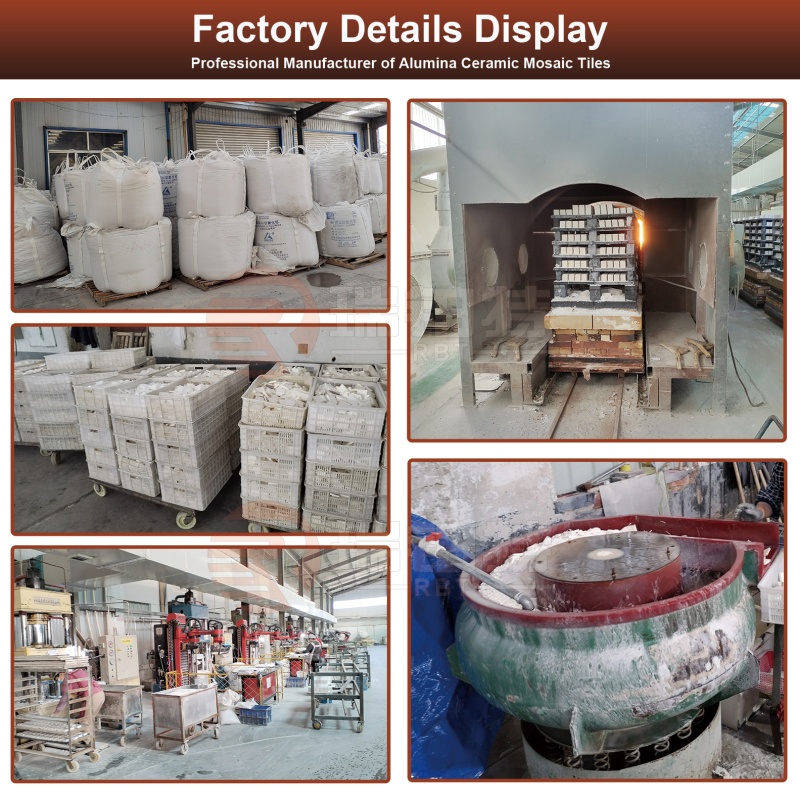

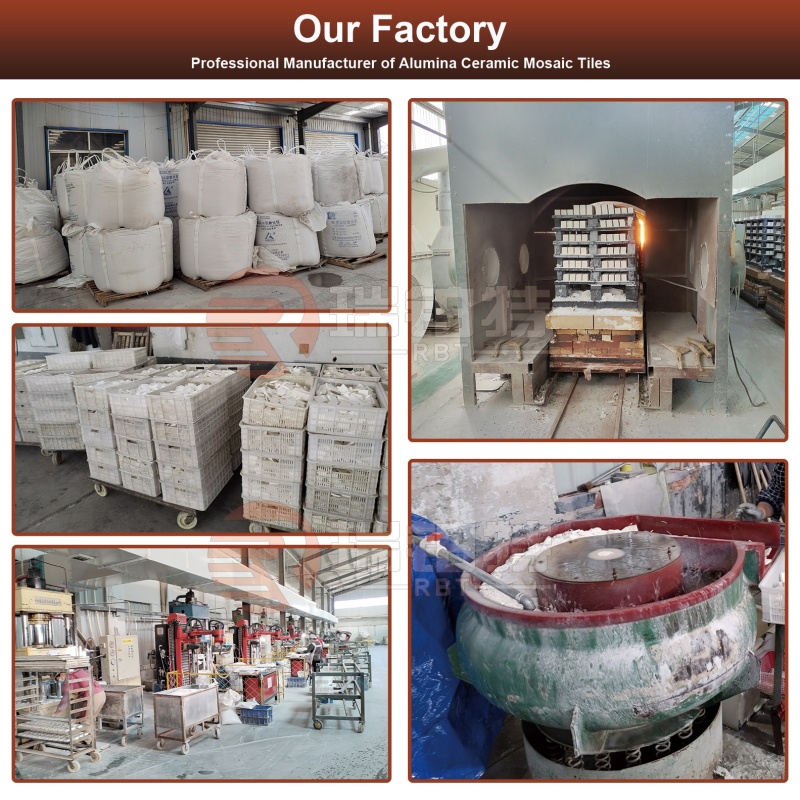

Company Profile
Shandong Robert New Material Co., Ltd. is located in Zibo City, Shandong Province, China, which is a refractory material production base. We are a modern enterprise that integrates the research and development, production, sales, kiln design and construction, technology, and export refractory materials. We have complete equipment, advanced technology, strong technical strength, excellent product quality, and good reputation. Our factory covers over 200 acres and an annual output of shaped refractory materials is approximately 30000 tons and unshaped refractory materials is 12000 tons.
Our main products of refractory materials include: alkaline refractory materials; aluminum silicon refractory materials; unshaped refractory materials; insulation thermal refractory materials; special refractory materials; functional refractory materials for continuous casting systems.
