Magnesia Chrome Bricks
Magnesia chrome brick is a basic refractory material made of magnesia sand and chrome ore as the main raw materials. It has excellent high temperature performance and corrosion resistance, which makes it an ideal choice for high temperature kilns such as the metallurgical industry. In these high temperature environments, magnesia-chrome bricks can not only protect the furnace structure, but also extend the service life of the furnace.

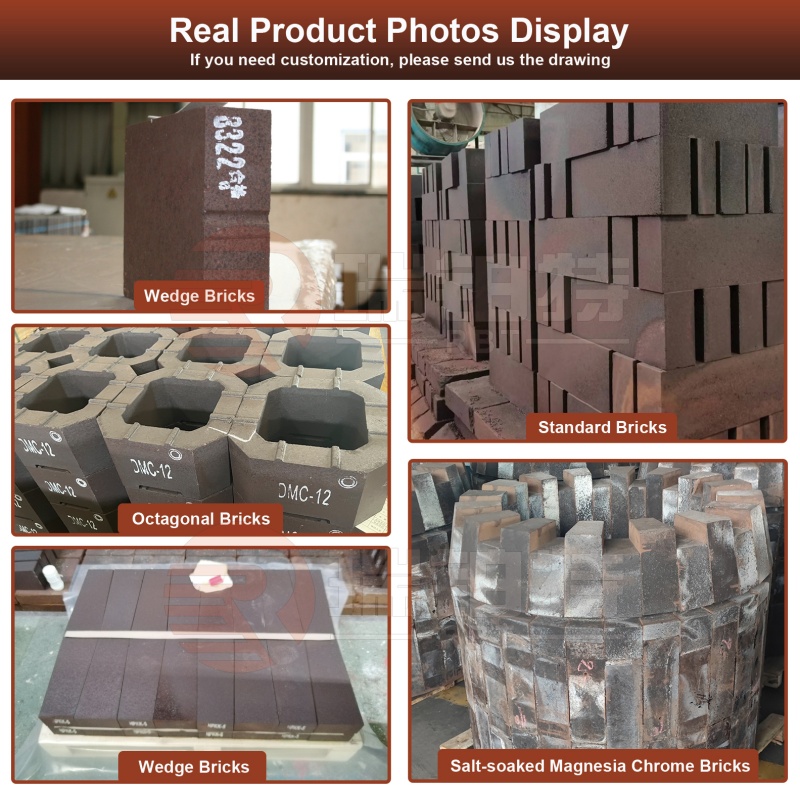

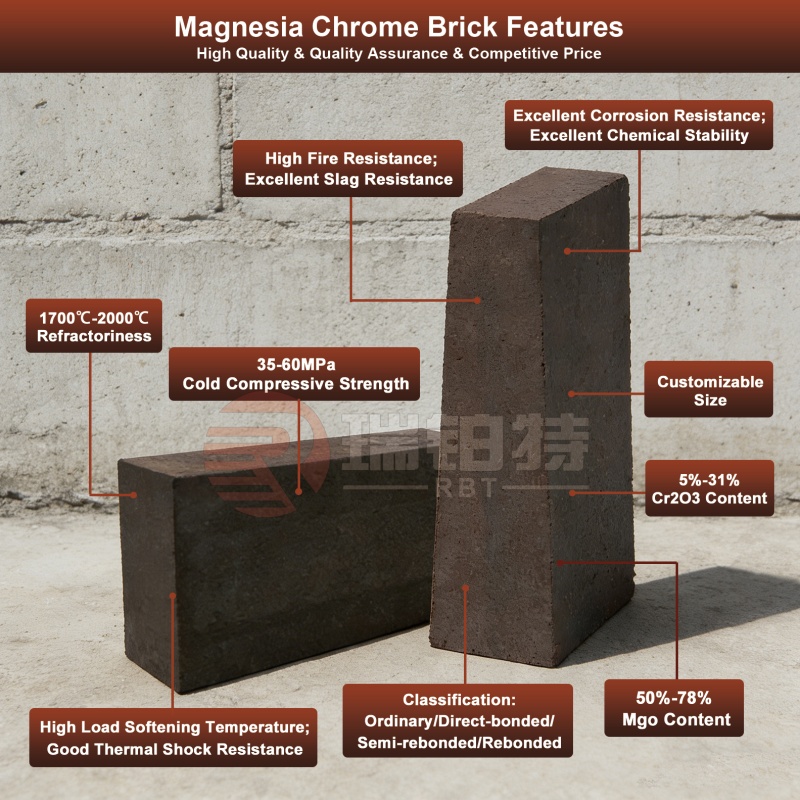

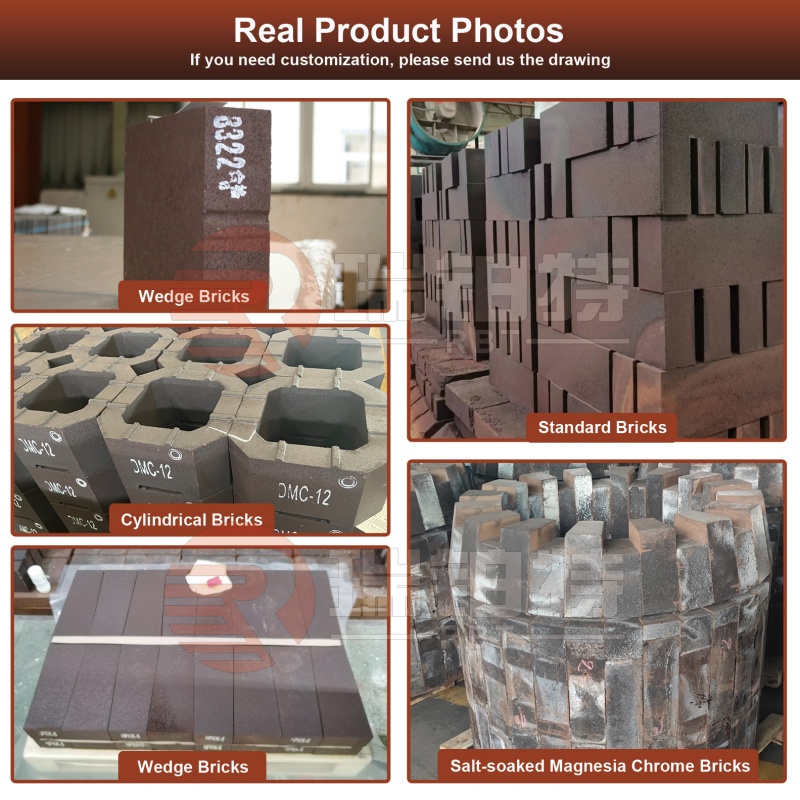

Classification: Ordinary/Direct-bonded/Semi-rebonded/Rebonded

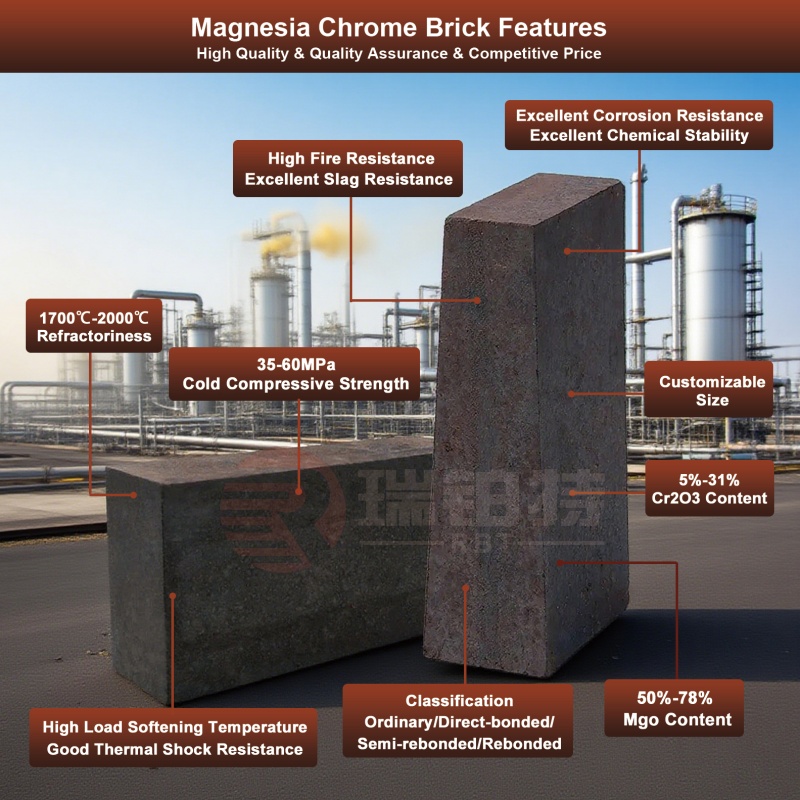

High refractoriness & high-temp stability: Refractoriness over 1700℃, load softening temp >1600℃; stable at high temps, suitable for high-temp load-bearing parts (e.g., steelmaking furnace/kiln linings).
Excellent slag corrosion resistance: Alkaline MgO and inert Cr₂O₃ enable strong resistance to alkaline slags and some acidic media, especially in oxidizing atmospheres, extending furnace lining life.
Good thermal shock stability: Cr₂O₃ improves thermal expansion and toughness, resisting cracking/spalling during rapid temp changes (e.g., furnace start-up/shutdown).
High strength & wear resistance: High room-temp compressive/flexural strength; chromium oxide surface ensures good resistance to furnace material impact and wear.
Strong resistance to metal/gas erosion: Resists molten iron, steel, and furnace gases (e.g., CO, CO₂) at high temps, suitable for parts in direct contact with molten metals/high-temp gases.
Good thermal conductivity: Optimizes heat transfer and thermal efficiency of high-temp equipment.

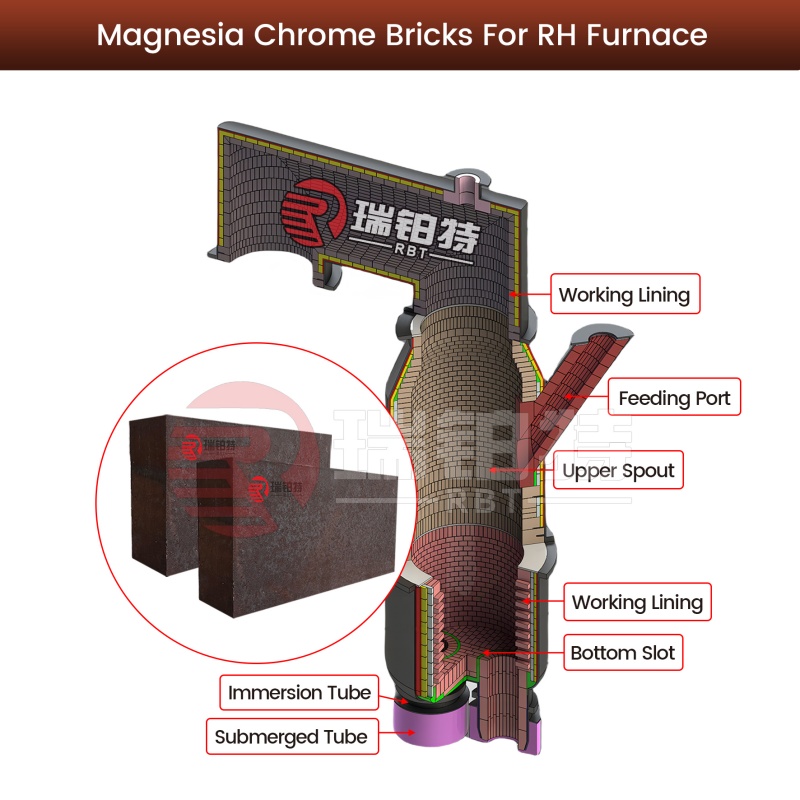

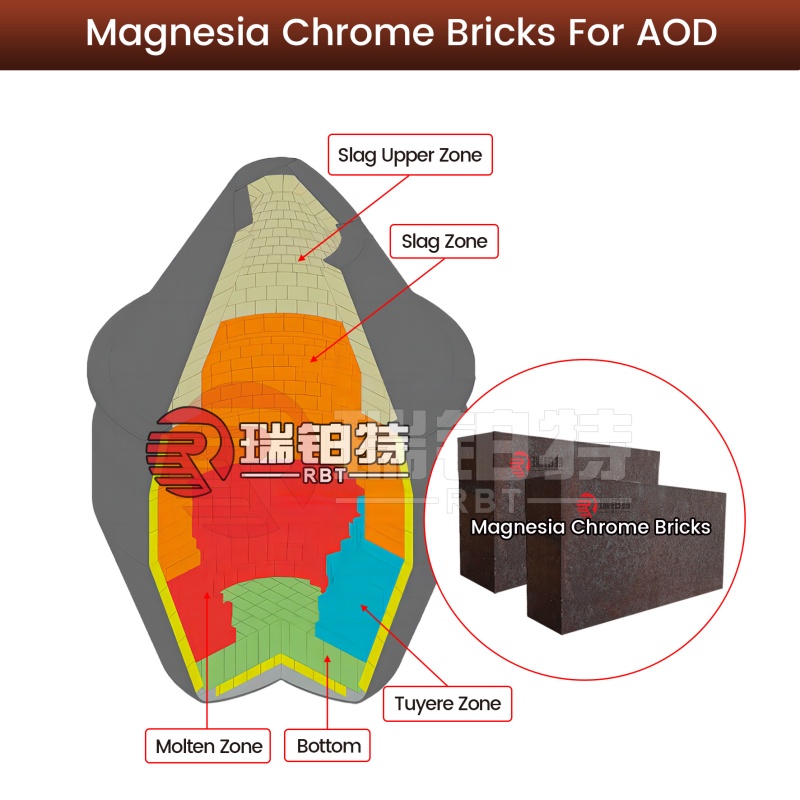

Excellent vacuum damage resistance: Stable performance in vacuum smelting (e.g., RH/DH/VOD furnaces), not easily damaged.
|
INDEX
|
MgO
(%)≥
|
Cr2O3
(%)≥
|
SiO2
(%)≤
|
Apparent Porosity
(%)≤
|
Bulk Density
(g/cm3)≥
|
Cold Crushing
Strength(MPa) ≥
|
Refractoriness Under Load
(℃) 0.2MPa ≥
|
Thermal Shock Resistance 1100°water cool(times)
|
|
|
Ordinary Magnesia Chrome Bricks
|
RBTMC-8
|
65
|
8~10
|
6
|
20
|
2.95
|
35
|
1600
|
3
|
|
RBTMC-12
|
60
|
12~14
|
4.5
|
20
|
3.0
|
35
|
1600
|
3
|
|
|
RBTMC-16
|
55
|
16~18
|
3.5
|
18
|
3.05
|
45
|
1700
|
4
|
|
|
Direct Bonded Magnesia Chrome Bricks
|
RBTDMC-8
|
78
|
8~11
|
2.0
|
18
|
3.05
|
45
|
1680
|
6
|
|
RBTDMC-12
|
72
|
12~15
|
1.8
|
18
|
3.10
|
45
|
1700
|
5
|
|
|
RBTDMC-16
|
62
|
16~19
|
1.8
|
18
|
3.10
|
45
|
1700
|
5
|
|
|
Semi-recombined Magnesia Chrome Bricks
|
RBTSRMC -16
|
62
|
16~18
|
1.7
|
17
|
3.15
|
50
|
1700
|
6
|
|
RBTSRMC -20
|
58
|
20~22
|
1.5
|
16
|
3.15
|
45
|
1700
|
5
|
|
|
RBTSRMC -24
|
53
|
24~26
|
1.5
|
16
|
3.20
|
45
|
1700
|
5
|
|
|
RBTSRMC -26
|
50
|
26~28
|
1.5
|
16
|
3.20
|
45
|
1700
|
5
|
|
|
Recombined Magnesia Chrome Bricks
|
RBTRMC-16
|
65
|
16~19
|
1.5
|
16
|
3.20
|
55
|
1700
|
5
|
|
RBTRMC-20
|
60
|
20~23
|
1.2
|
16
|
3.25
|
60
|
1700
|
5
|
|
|
RBTRMC-24
|
55
|
24~27
|
1.5
|
16
|
3.20
|
60
|
1700
|
5
|
|
|
RBTRMC-28
|
50
|
28~31
|
1.5
|
17
|
3.26
|
60
|
1700
|
4
|
|

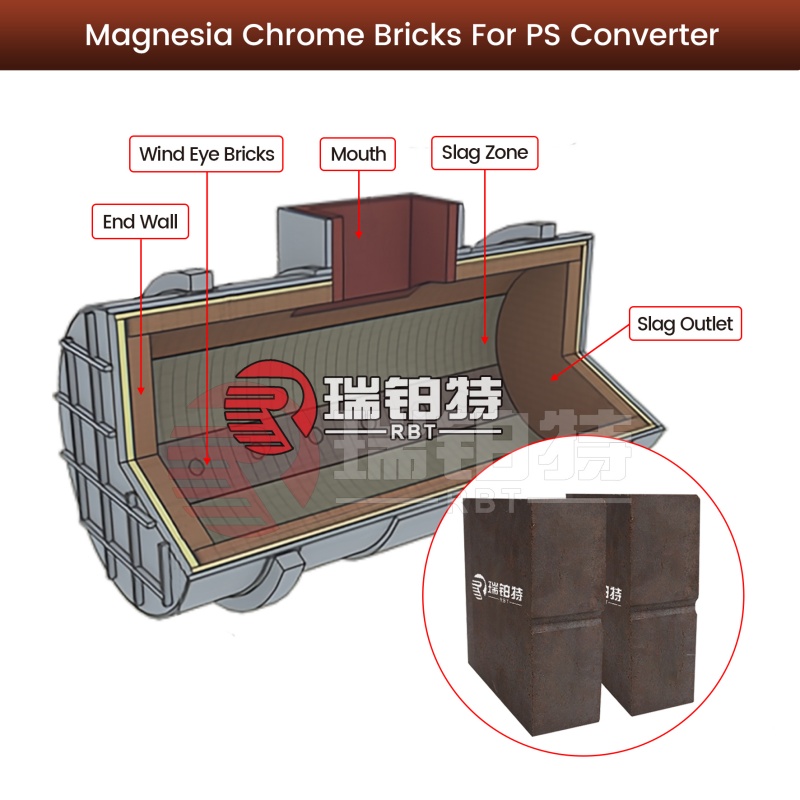

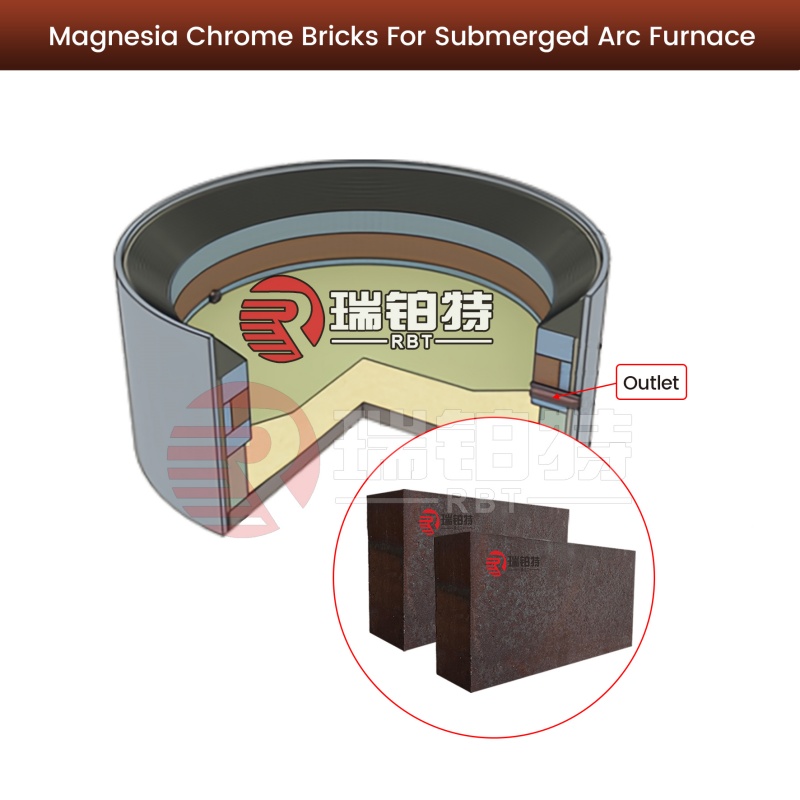

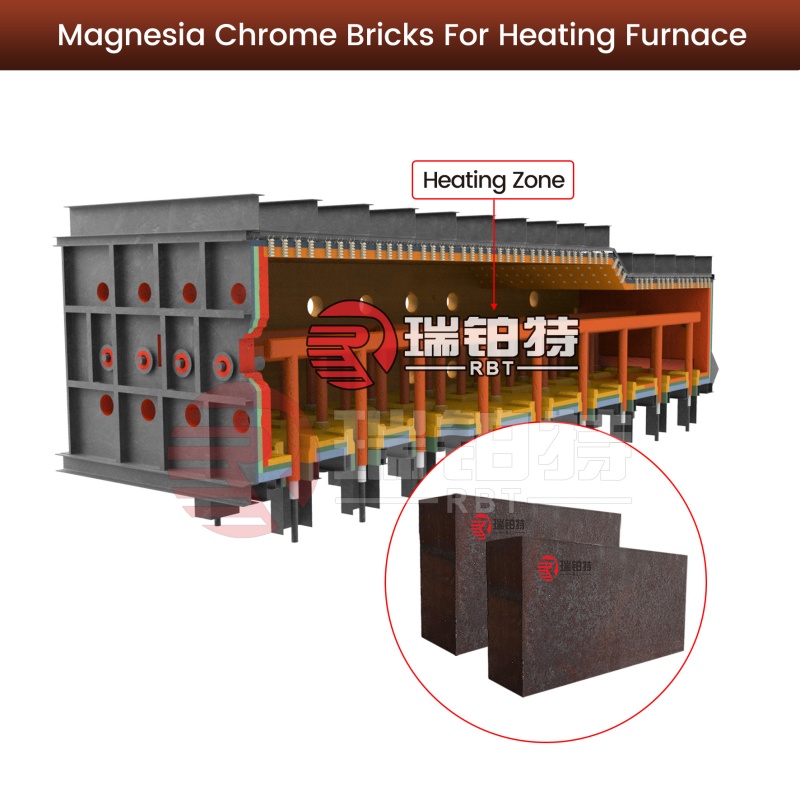

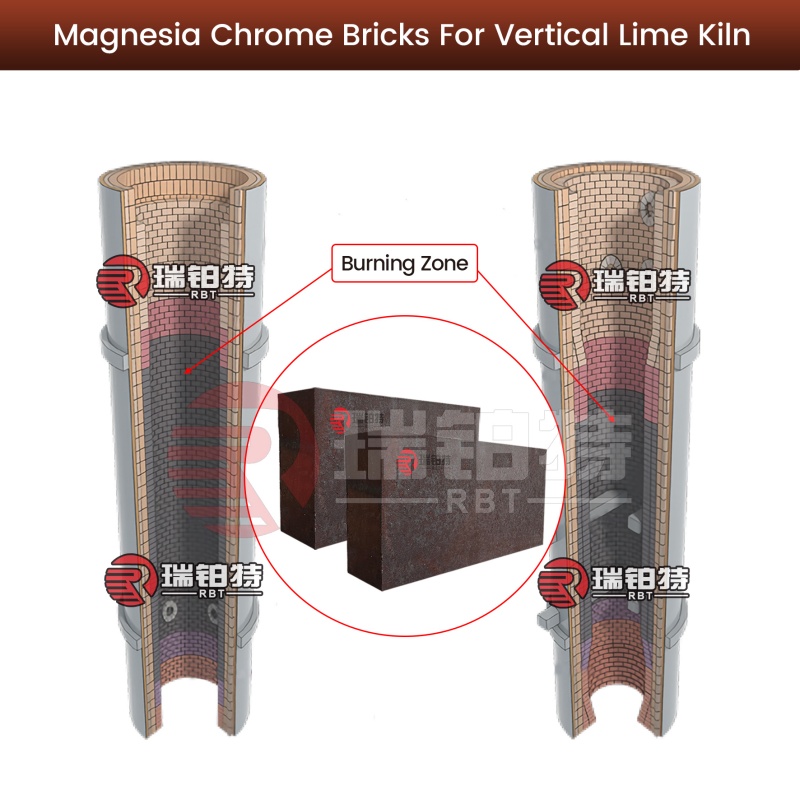

1. Steel & Iron Industry

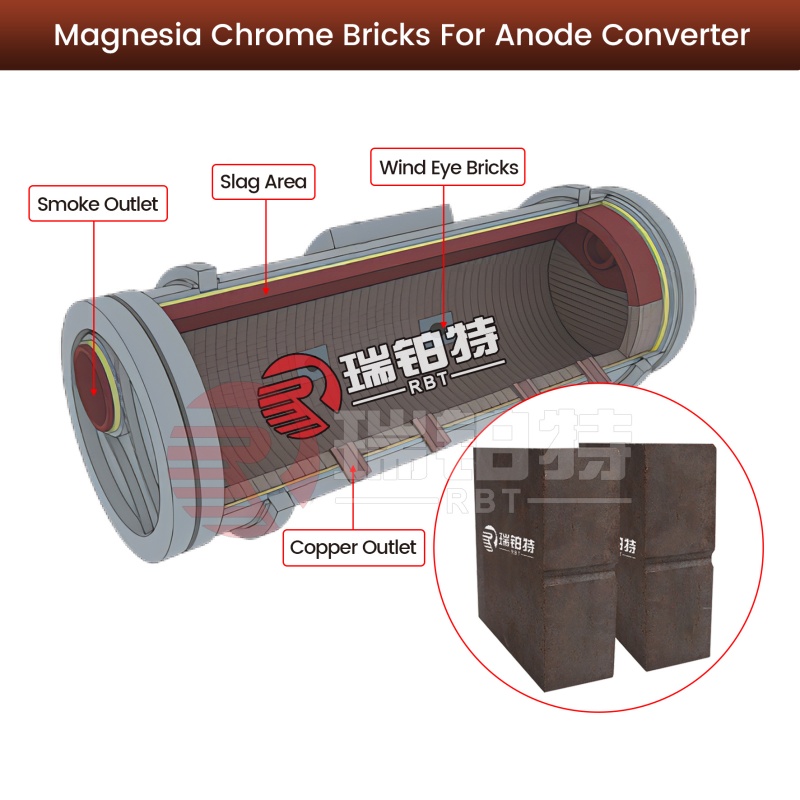

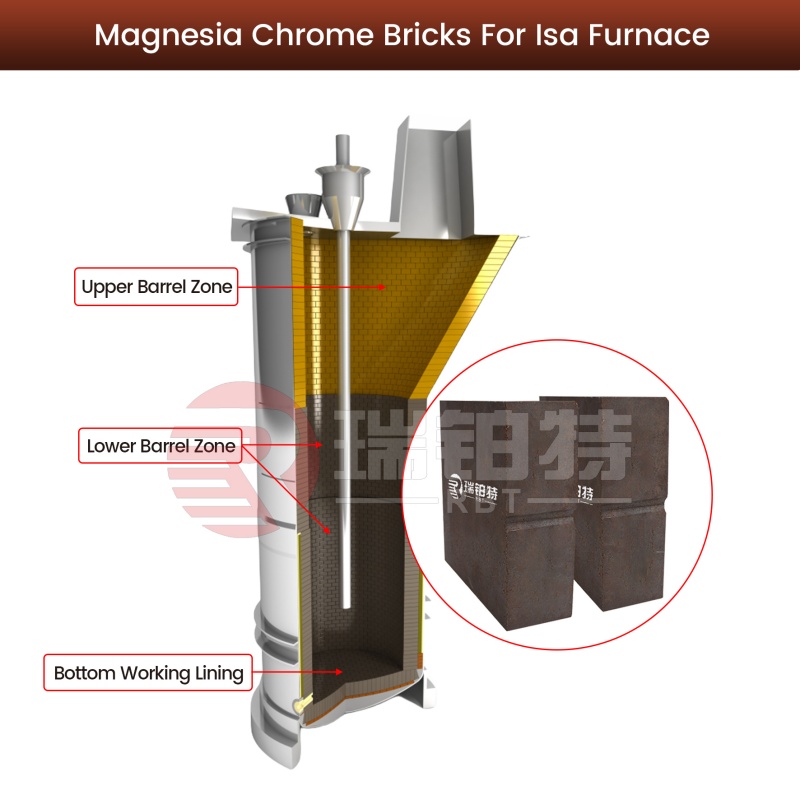

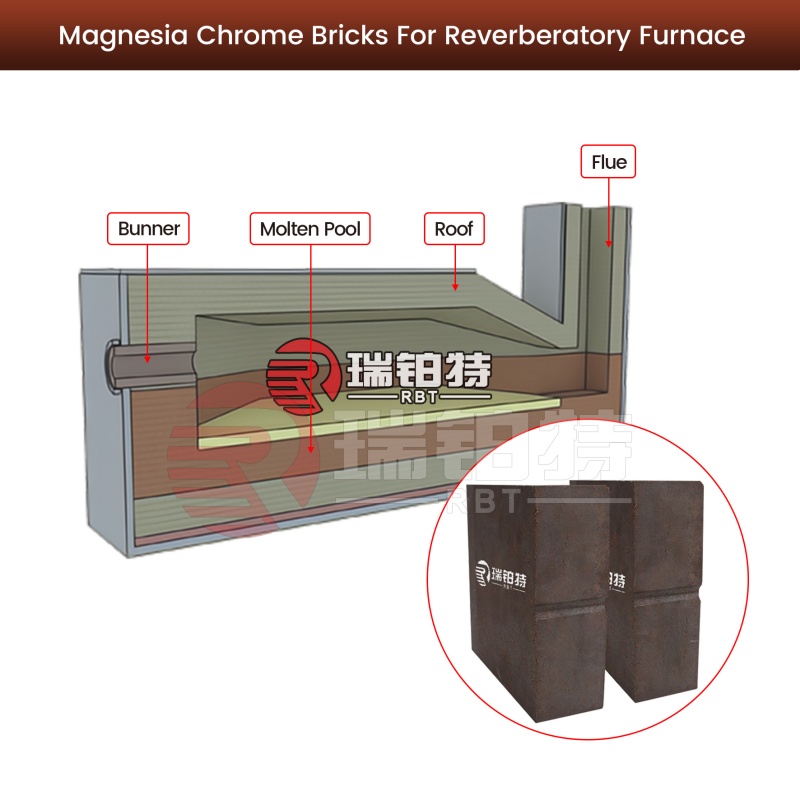

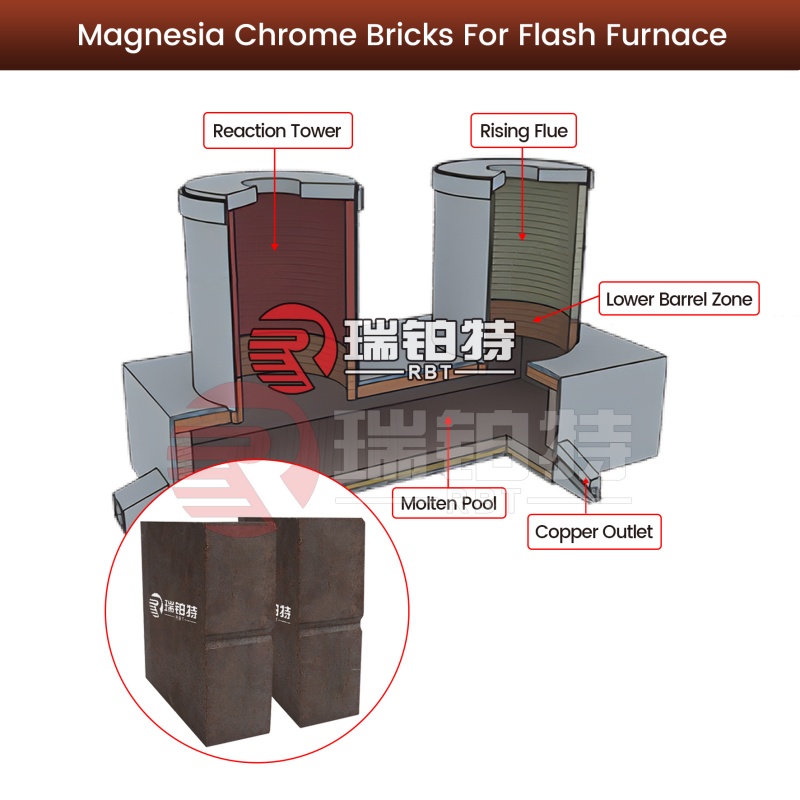

Used for the lining of non-ferrous metal smelting equipment such as copper, aluminum, and nickel, especially in high-temperature alkaline environments.
Frequently Asked Questions
Need help? Be sure to visit our support forums for answers to your questions!

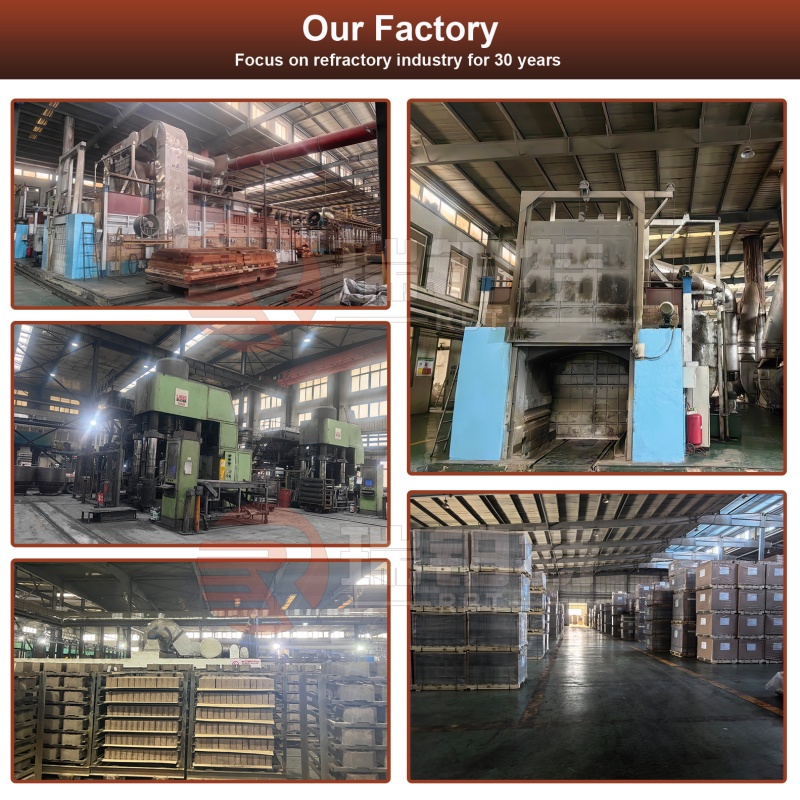

We are a real manufacturer, our factory is specialized in producing refractory materials for more than 30 years. We promise to provide the best price, the best pre-sale and after-sale service.

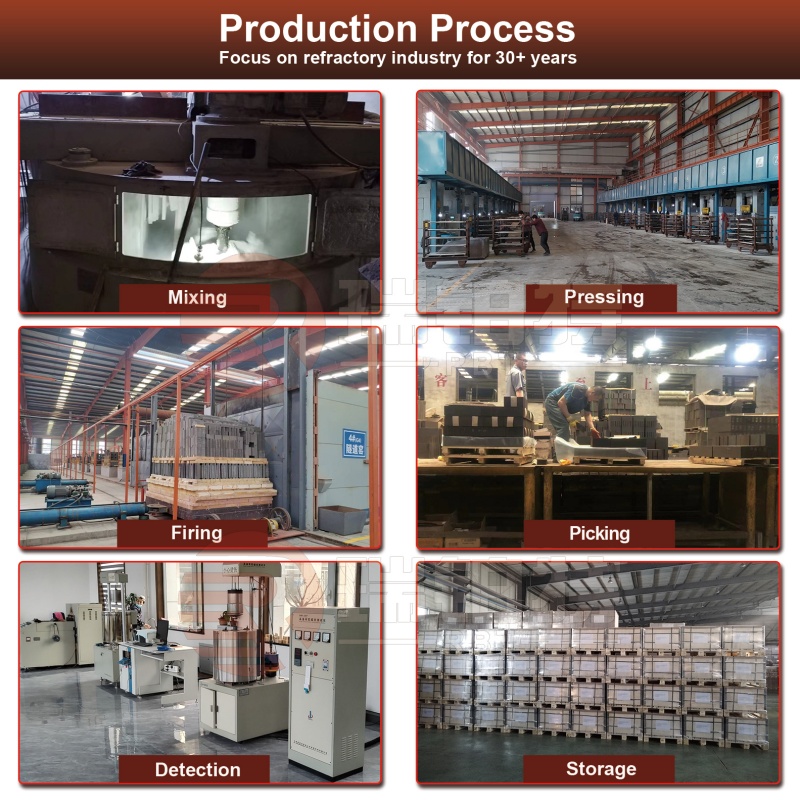

For each production process, RBT has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

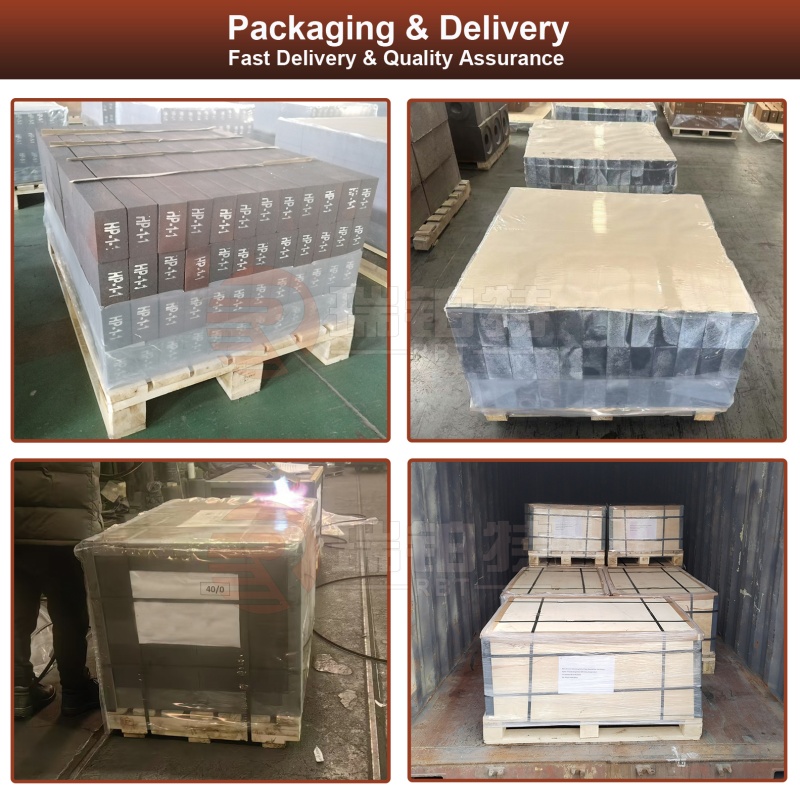

Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.
