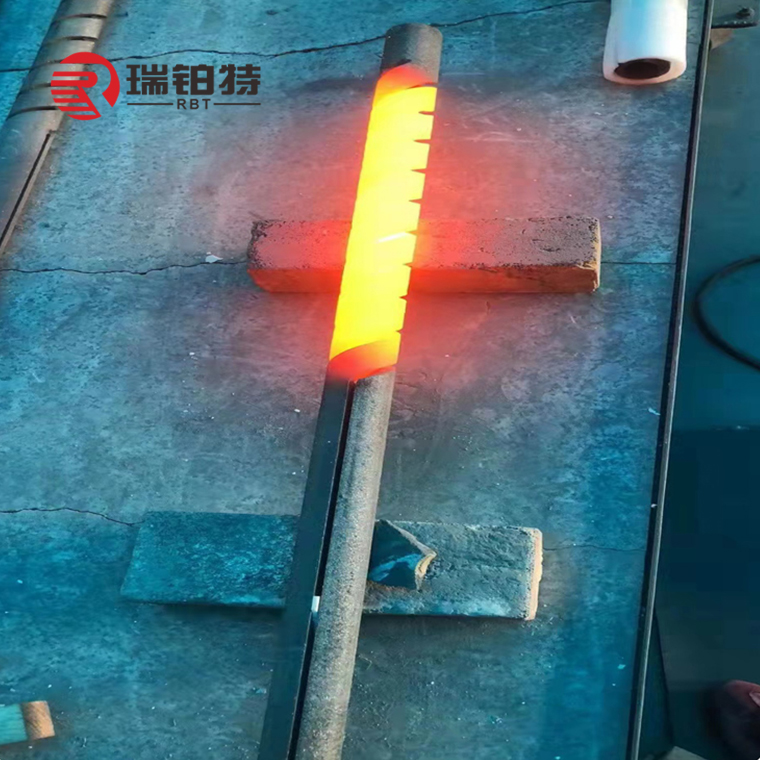

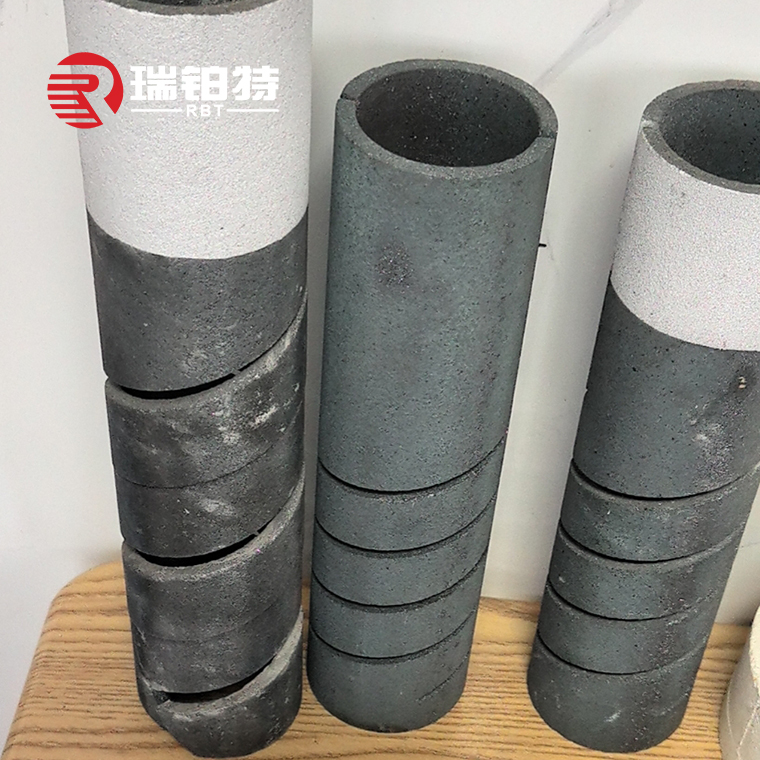

Spiral silicon carbide (SiC) heating rods, also known as Spiral SiC Heating Elements, are advanced non-metallic heating components designed for extreme high-temperature industrial applications. As a core part of industrial kilns and heating systems, spiral SiC heating rods outperform traditional metal heaters with their superior heat resistance, oxidation stability, and long service life, making them a top choice for businesses seeking reliable high-temperature heating solutions.
Unlike metal heating elements that fail quickly in harsh environments, spiral SiC heating rods can operate stably at temperatures ranging from 600°C to 1600°C, with a maximum surface load of 15–25 W/cm². The unique spiral structure of these rods ensures uniform heat distribution, minimizing temperature variation (within 40°C at 1300°C) and guaranteeing consistent product quality in critical thermal processes— a key advantage for industries relying on precise heating.
Key Advantages of Our Spiral SiC Heating Rods
- Ultra-High Temperature Resistance: Stable operation up to 1600°C, suitable for high-temperature sintering, heat treatment, and melting processes— ideal for industrial kilns.
- Spiral Structure Benefit: The spiral heating zone enhances thermal efficiency, ensures uniform heat distribution, and maintains stable power output, reducing energy consumption.
- Exceptional Durability: Made of high-purity SiC (≥95%) with low porosity and strong thermal shock resistance, these spiral SiC rods resist cracking during rapid heating and cooling cycles.
- Corrosion & Oxidation Resistance: Superior chemical stability against oxidation, acids, and alkalis, maintaining performance in harsh furnace atmospheres without contaminating products.
- Easy Installation & Customization: Standard dimensions and fully customizable sizes (diameter, length, resistance) fit various industrial furnace designs, with spiral ends for secure mounting.
Main Specifications (Standard & Customizable)
Our spiral SiC heating rods are tailored to meet diverse industrial needs, with flexible specifications:
- Diameter: 6mm–60mm (customizable up to 80mm)
- Total Length: 100mm–1500mm (custom lengths available)
- Heating Zone Length: Customizable per furnace design
- Cold End Length: 150mm–250mm (standard, customizable)
- Resistance & Power: Custom-matched to voltage requirements
Widely Used Industrial Applications
Spiral SiC heating rods are essential for industries requiring precise high-temperature heating, including:
- Ceramics & Refractories: Sintering of advanced ceramics, kiln furniture, and refractory products
- Metallurgy & Glass: Metal heat treatment, powder metallurgy, glass melting, and processing
- Electronics & Semiconductors: Sintering of ceramic components and optical fiber processing
- Dental & Medical: High-precision sintering of zirconia dental restorations
- Laboratory & Research: Muffle furnaces, tube furnaces, and high-temperature testing equipment
Why Choose Our Spiral SiC Heating Rods? We adhere to ISO-certified production standards, with strict quality control to ensure consistent performance and dimensional accuracy. Our team provides professional technical support for furnace layout, installation, and customization— from spiral structure design to resistance matching. We offer small-batch and large-volume supply, helping you reduce replacement frequency and production costs.
If you`re looking for reliable, high-performance Spiral SiC Heating Rods for your industrial kilns, contact us today for a customized quote and technical consultation. Upgrade your heating system with our durable, efficient spiral silicon carbide heating elements.
Post time: Mar-30-2026
