Silicon Carbide Bricks
Product Information
Silicon carbide brick is a refractory material made of silicon carbide (SiC) as the main raw material. It has the characteristics of high hardness, high wear resistance, high thermal conductivity and good corrosion resistance. Its main component is silicon carbide, and the content is usually between 72% and 99%. Common types include clay-bonded silicon carbide bricks, silicon nitride-bonded silicon carbide bricks, Sialon-bonded silicon carbide bricks, etc.
1. Characteristics
High hardness: The Mohs hardness of silicon carbide bricks is 9, and it has extremely high wear resistance.
High thermal conductivity: It has high thermal conductivity and is suitable for occasions that require rapid heat dissipation.
Corrosion resistance: It has good stability to acidic slag and is suitable for various high temperature and chemical corrosion environments.
Thermal shock resistance: It has good thermal shock resistance and can remain stable under rapid temperature changes.
2. Classification
Silicon carbide bricks can be divided into the following categories according to different bonding methods:
Clay-bonded silicon carbide bricks: clay is used as a binder, suitable for occasions requiring high thermal conductivity and thermal shock resistance.
Silicon nitride-bonded silicon carbide bricks: fired through nitriding reaction, with excellent high temperature stability and wear resistance.
Sialon-bonded silicon carbide bricks: combined with Si3N4 and Al2O3 powder, suitable for high temperature and chemical corrosion environments.
Recrystallized silicon carbide bricks: prepared through recrystallization process, with high strength and good wear resistance.

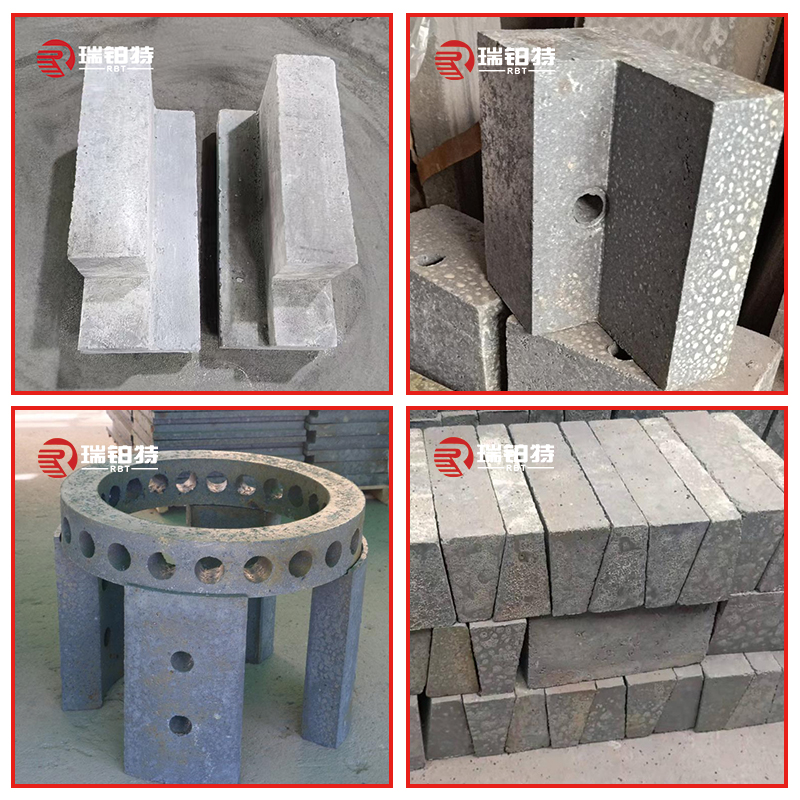

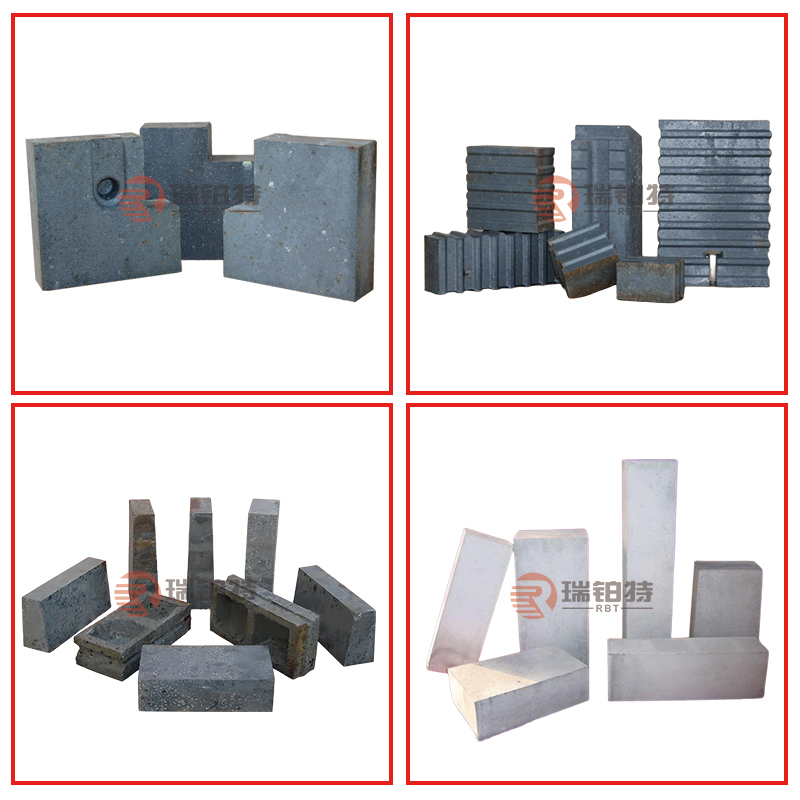

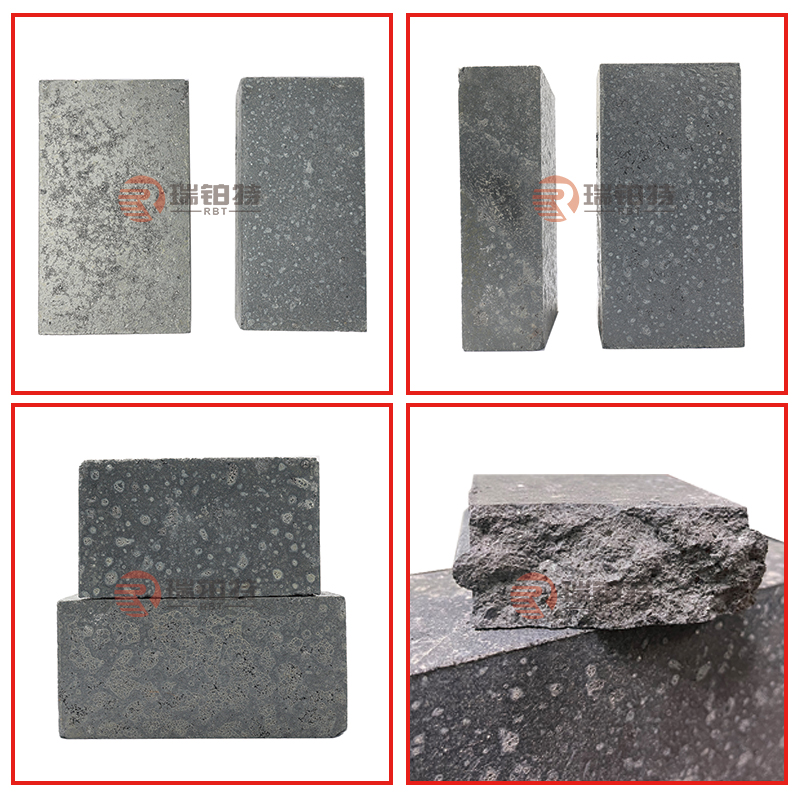

Details Images
Size and shape can be customized according to customer requirements!!!
Product Index
|
INDEX
|
Data
|
|
Refractoriness(℃) ≥
|
1750
|
|
Bulk Density(g/cm3) ≥
|
2.60
|
|
Apparent Porosity(%) ≤
|
10
|
|
Cold Crushing Strength(MPa) ≥
|
80
|
|
Thermal conductivity(W/m.k)
|
8-15
|
|
Refractoriness Under Load@ 0.2MPa(℃) ≥
|
1700
|
|
SIC(%) ≥
|
85
|
|
SiO2(%) ≥
|
10
|
Application
Silicon carbide bricks have high thermal conductivity, good wear resistance, thermal shock resistance, and erosion resistance. Therefore, silicon carbide bricks are widely used in the industrial field.
1. Lining, nozzles, plugs of metallurgical steel cylinders, blast furnace bottom and belly, and water-free slide rails of heating furnaces;
2. Non-ferrous metal smelting distiller, distillation tower tray, electrolytic cell side wall, smelting metal crucible;
3. Shelves and flame insulation materials of silicate industrial kilns;
4. Oil and gas generators and organic waste combustion furnaces in the chemical industry;
5. High-tech ceramic kiln furniture aluminum electrolytic cell lining, molten aluminum conduit and ceramic kiln furniture, the lower part of the large and medium-sized blast furnace body, furnace waist and furnace belly, aluminum refining furnace lining, zinc distillation tank lining, etc.

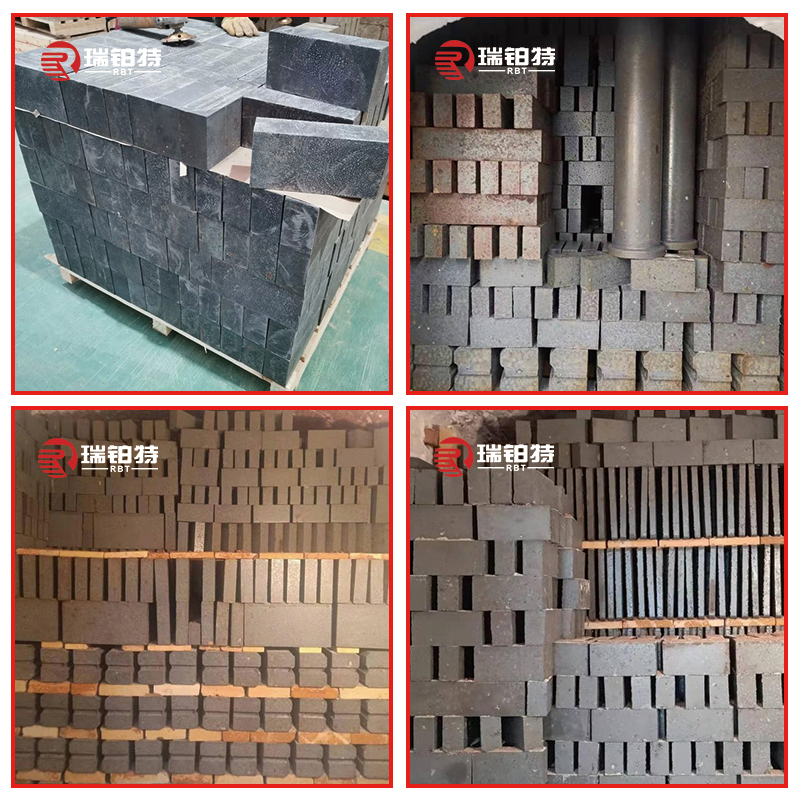

Package&Warehouse
Company Profile
Shandong Robert New Material Co., Ltd. is located in Zibo City, Shandong Province, China, which is a refractory material production base. We are a modern enterprise that integrates the research and development, production, sales, kiln design and construction, technology, and export refractory materials. We have complete equipment, advanced technology, strong technical strength, excellent product quality, and good reputation. Our factory covers over 200 acres and an annual output of shaped refractory materials is approximately 30000 tons and unshaped refractory materials is 12000 tons.
Our main products of refractory materials include: alkaline refractory materials; aluminum silicon refractory materials; unshaped refractory materials; insulation thermal refractory materials; special refractory materials; functional refractory materials for continuous casting systems.
Frequently Asked Questions
Need help? Be sure to visit our support forums for answers to your questions!
We are a real manufacturer, our factory is specialized in producing refractory materials for more than 30 years. We promise to provide the best price, the best pre-sale and after-sale service.
For each production process, RBT has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.
Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.
Of course, we provide free samples.
Yes, of course, you are welcome to visit RBT company and our products.
There is no limit, we can provide the best suggestion and solution according to your situation.
We have been making refractory materials for more than 30 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
