Silicon Carbide Microcrystal Tubes & Plates

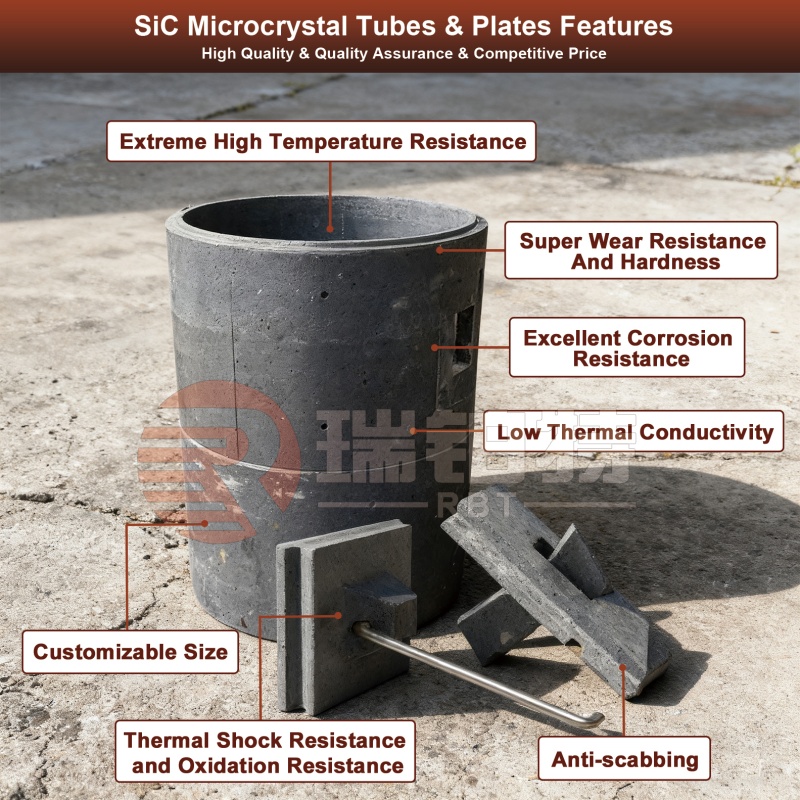

Silicon carbide microcrystal tubes and plates are high-performance special ceramic materials made from high-purity silicon carbide (SiC) through precision high-temperature sintering. They feature excellent wear resistance, high temperature resistance, corrosion resistance, thermal shock resistance, and anti-clogging & anti-deposition properties, making them ideal linings and structural components for high-temperature, high-wear, and easy-deposition working conditions.
Customization Advantages:
1. Custom specifications as required
Customizable diameters, lengths, wall thicknesses for SiC microcrystal tubes, and customizable areas, thicknesses and shapes for microcrystal plates according to actual equipment dimensions.
2. Suitable for various equipment retrofits
Support non-standard structural design, perfectly matching pipelines, chutes, bins, preheaters, flue ducts, mill liners and other equipment.
3. Easier installation
Structure optimized for on-site installation, reducing cutting and welding difficulty, shortening construction period.
4. One-stop solution
Provide full-process customized services from material selection, design, production to on-site adaptation, improving overall service life and performance.
Core Product Performance:

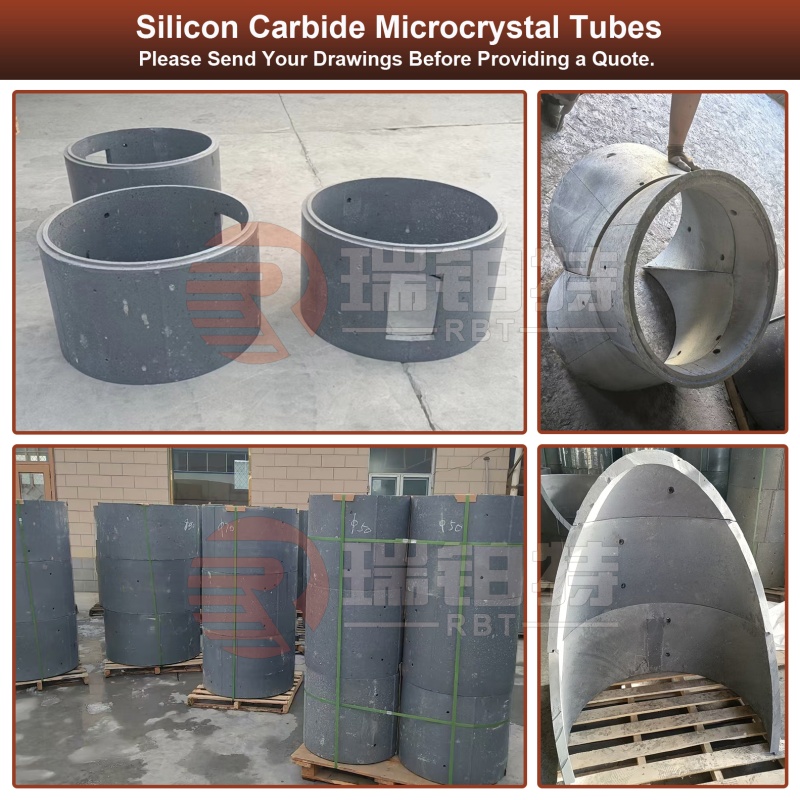

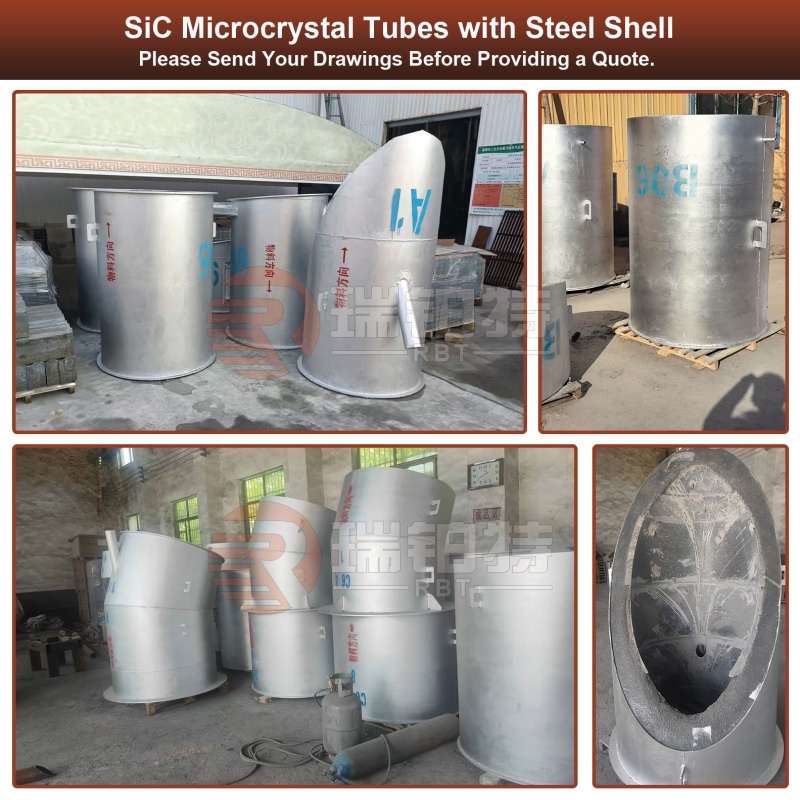

1. Silicon Carbide Microcrystal Tubes
(1) Anti-deposition, non-sticky, anti-clogging
Dense and smooth surface with no pores, preventing materials and dust from adhering and depositing, fundamentally reducing pipeline blockage and downtime for cleaning.
(2) Super wear resistance, long service life
High hardness and erosion resistance, with service life far exceeding ordinary wear-resistant steel pipes and cast stone pipes.
(3) Stable high temperature resistance & thermal shock resistance
Stable operation in long-term high-temperature environments, resistant to cracking under rapid temperature changes.
(4) Acid and alkali corrosion resistance
High chemical stability, suitable for various corrosive medium transportation and flue gas working conditions.
(5) High strength & impact resistance
Pressure and extrusion resistant, adapting to harsh conditions in cement, mining, metallurgy and other industries.

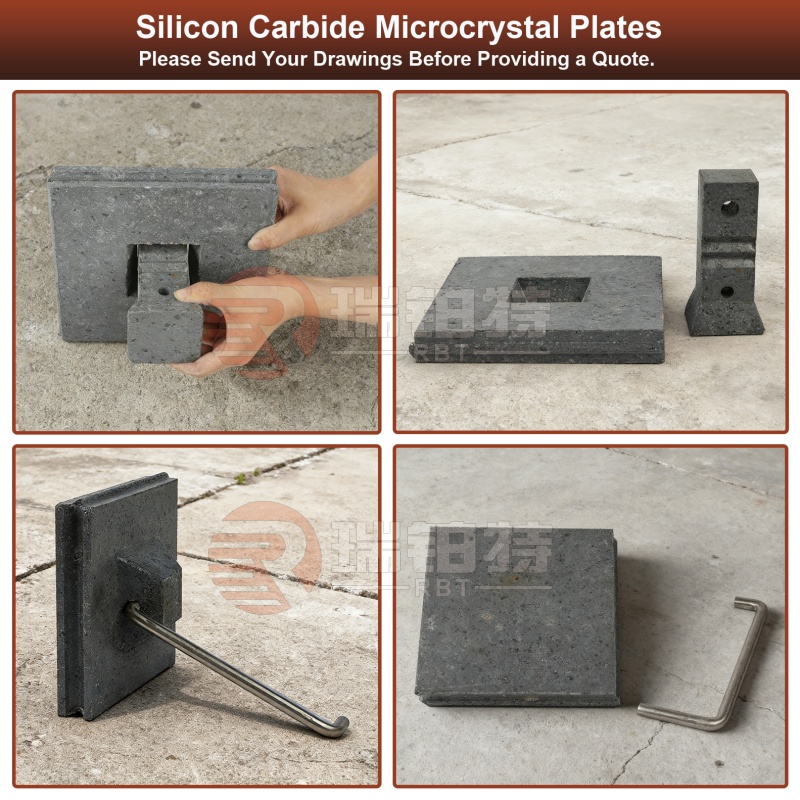

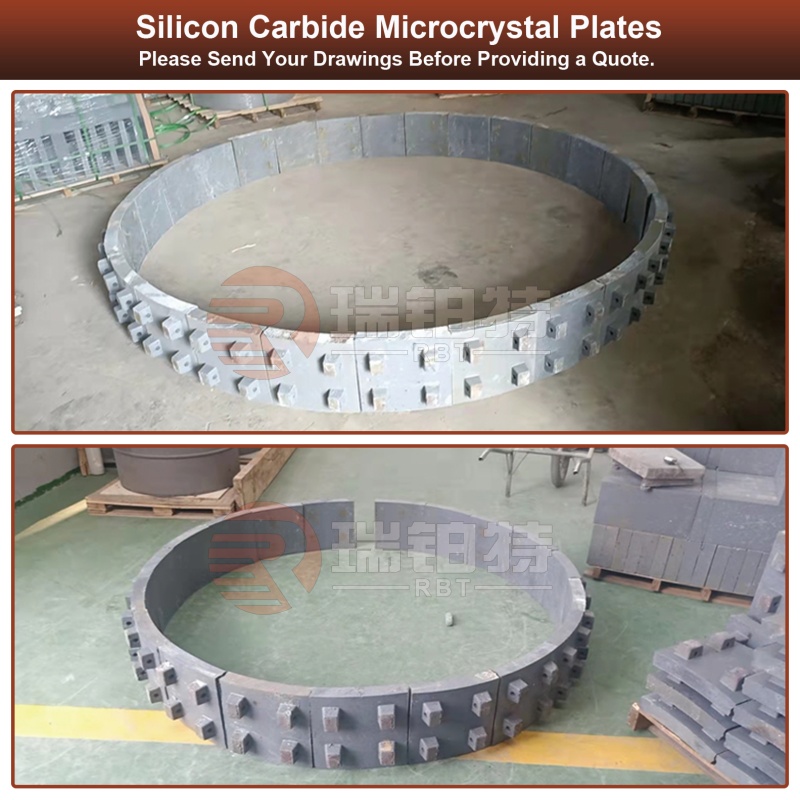

2. Silicon Carbide Microcrystal Plates
(1) Dense surface with outstanding anti-deposition effect
High flatness and smooth non-sticky surface, greatly reducing deposition and blockage in preheaters, flue ducts, bins, chutes, etc.
(2) Wear and impact resistant against strong erosion
Effectively protect equipment shells, reducing wear, deformation and maintenance frequency.
(3) Stable performance at high temperatures
No softening, creep or deformation at high temperatures, reliable for long-term use.
(4) Corrosion resistant and easy to maintain
Resistant to flue gas and acid-alkali corrosion, easy for daily cleaning and low maintenance cost.
|
Item
|
Data
|
|
SiC
|
90%
|
|
Max Operating Temperature
|
1550℃
|
|
Bulk Density
|
2.6-2.7(g/cm3)
|
|
Silicon Dioxide
|
5-7%
|
|
Cold Bending Strength
|
45Mpa
|
|
1000℃ Thermal Expansion Rate
|
0.42-0.48%
|
|
Apparent Porosity
|
7-8%
|
Typical Applications:
1. Cement Industry: Liners for preheaters, tertiary air ducts, kiln inlet chambers, chutes, discharge hoppers, kiln tail systems
2. Mining & Metallurgy: Ore tanks, bins, conveying pipelines, crusher liners, ball mill liners
3. Power Industry: Fly ash conveying, slag removal, coal milling, desulfurization and denitrification systems
4. Chemical & Environmental Protection: High-temperature flue ducts, reaction kettles, anti-corrosion and wear-resistant equipment liners
Frequently Asked Questions
Need help? Be sure to visit our support forums for answers to your questions!
We are a real manufacturer, our factory is specialized in producing refractory materials for more than 30 years. We promise to provide the best price, the best pre-sale and after-sale service.
For each production process, RBT has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

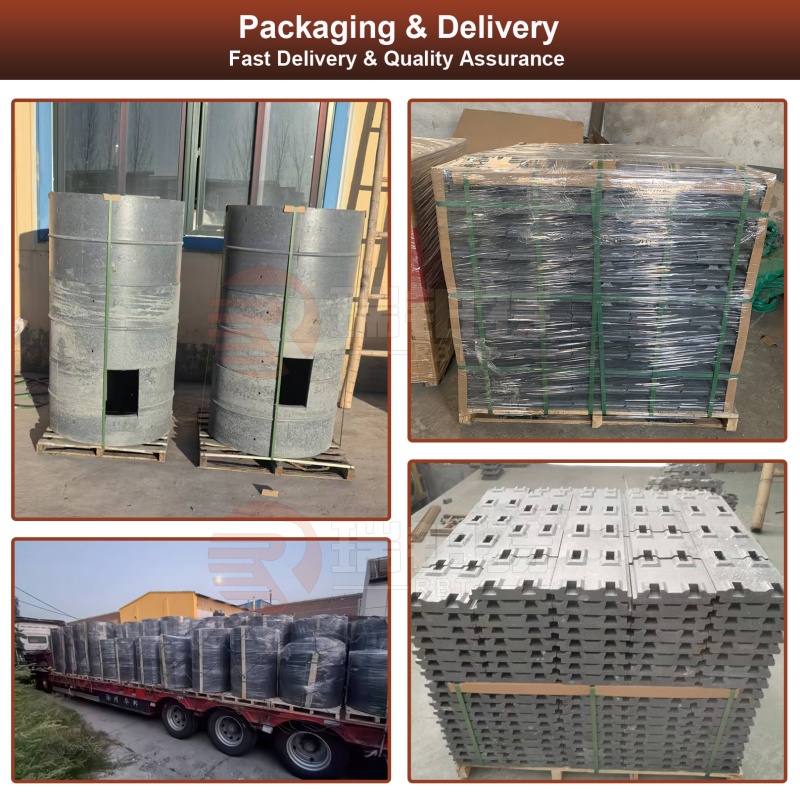

Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.
