Silicon Carbide Refractory Plate
Silicon carbide refractory plate is a kiln lining plate with excellent fire resistance and wear resistance. It is often used in working environments that carry and transfer heat and chemicals under high temperature, high pressure and chemical corrosion conditions. Silicon carbide setter plates are mainly made of silicon carbide and silicon nitride materials, with high bulk density and fire resistance temperature, low thermal conductivity, and are not easy to affect the temperature distribution of the device.

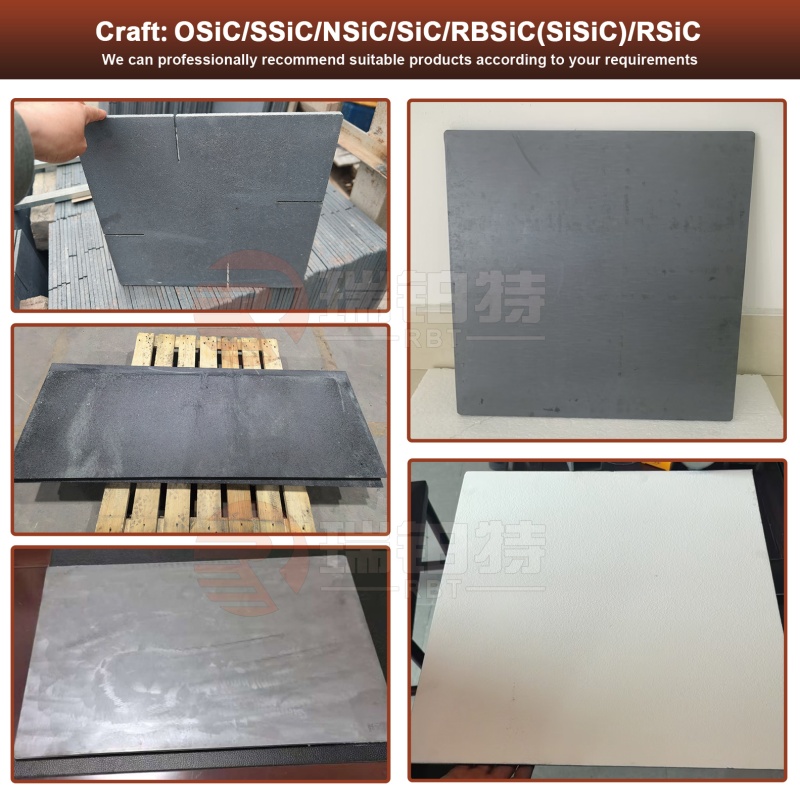

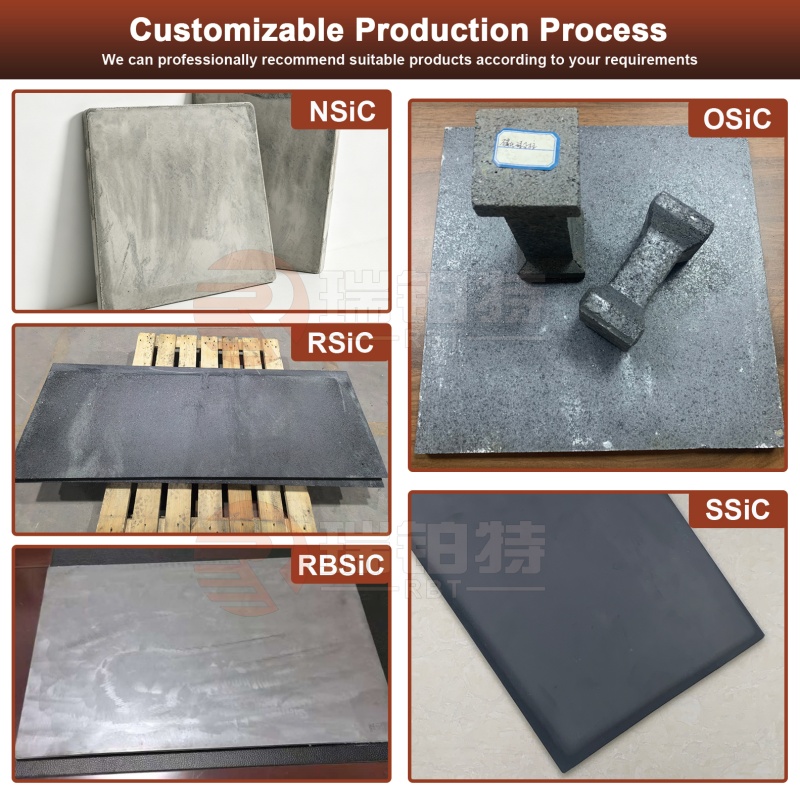

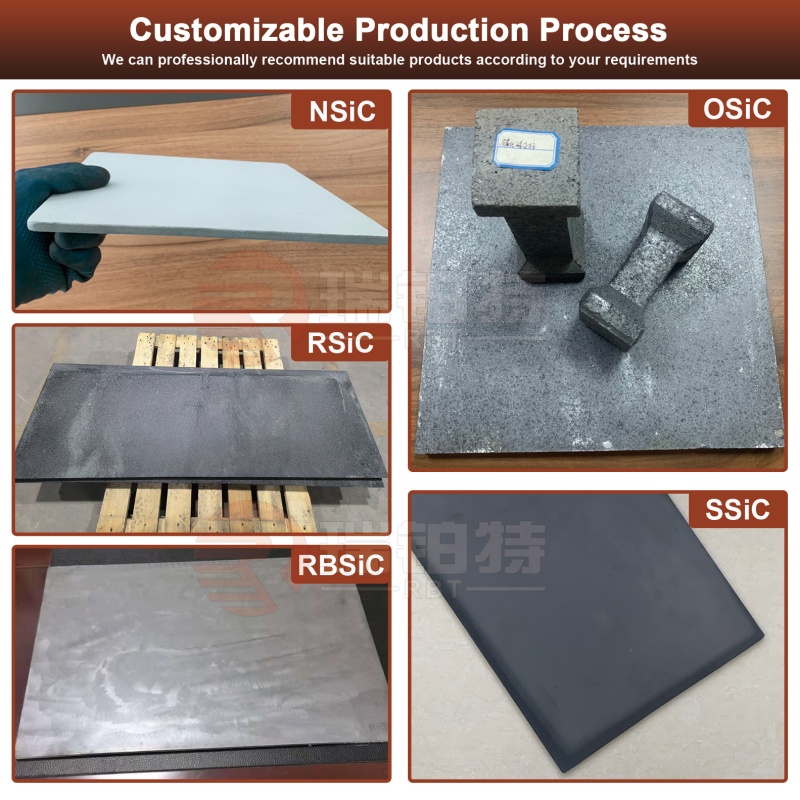

Production Processes: OSiC/SSiC/NSiC/SiC/RBSiC(SiSiC)/RSiC.

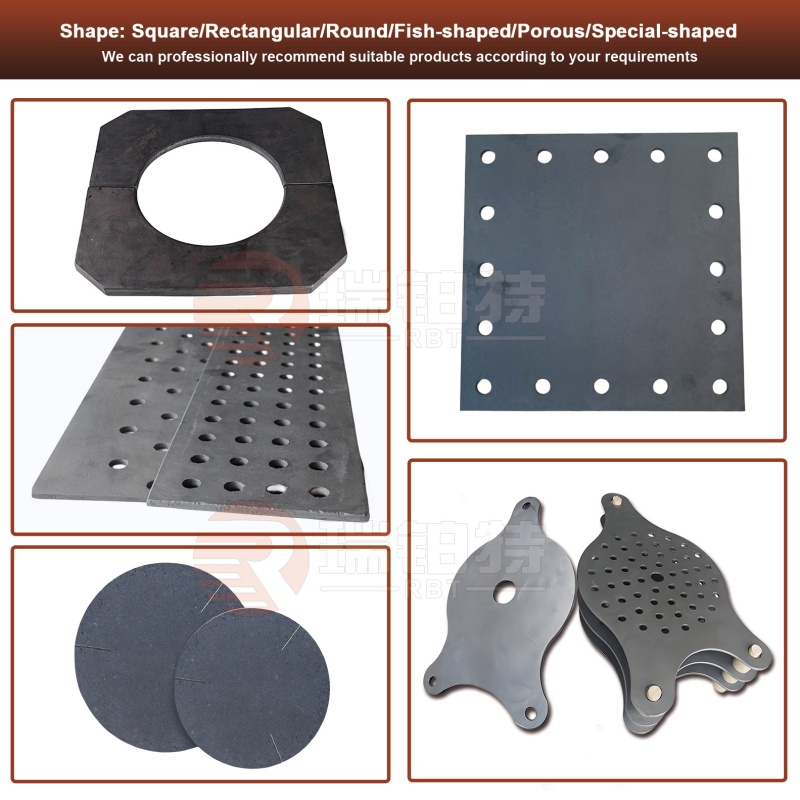

Dimensions/Shape: Any size (max 1200×800mm) and shape (rectangle, circle, special cutouts) via CNC machining.
Craft Tailoring: Adjust bonding agents, sintering cycles, and surface treatments for your exact process parameters.
After-Sales: Technical consultation, installation guidance.

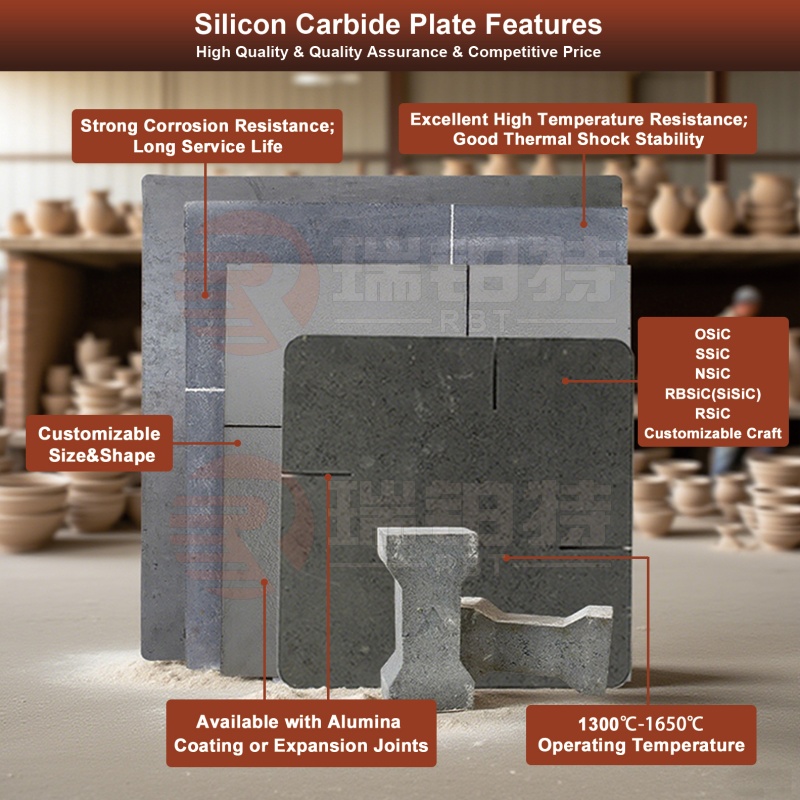

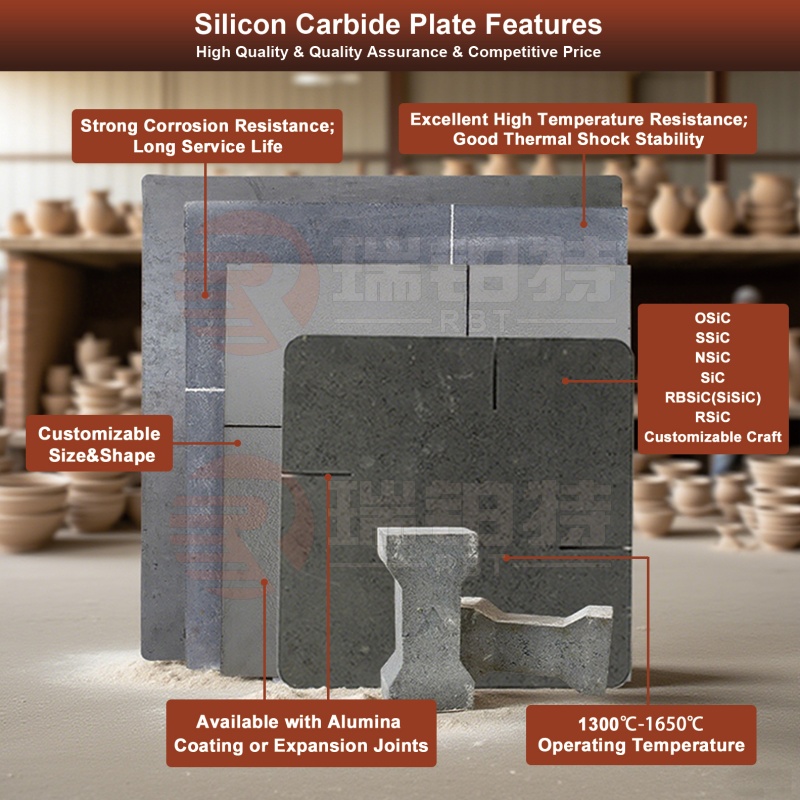

Features:
Fire resistance and wear resistance: Silicon carbide setter plates can work stably under high temperature, high pressure and chemical corrosion conditions, and have excellent fire resistance and wear resistance.
Anti-oxidation performance: It can work stably in oxidizing and reducing atmospheres, and the number of turnovers can reach more than 500-1000 times.
High temperature compressive and flexural strength: It has high strength and good compressive resistance, and can be used for a long time at high temperature without deformation.
Resistance to rapid cooling and heating: It has good resistance to rapid cooling and heating, and is not easy to crack during use. Wide operating temperature range: can be used in the range of 800℃-1400℃.

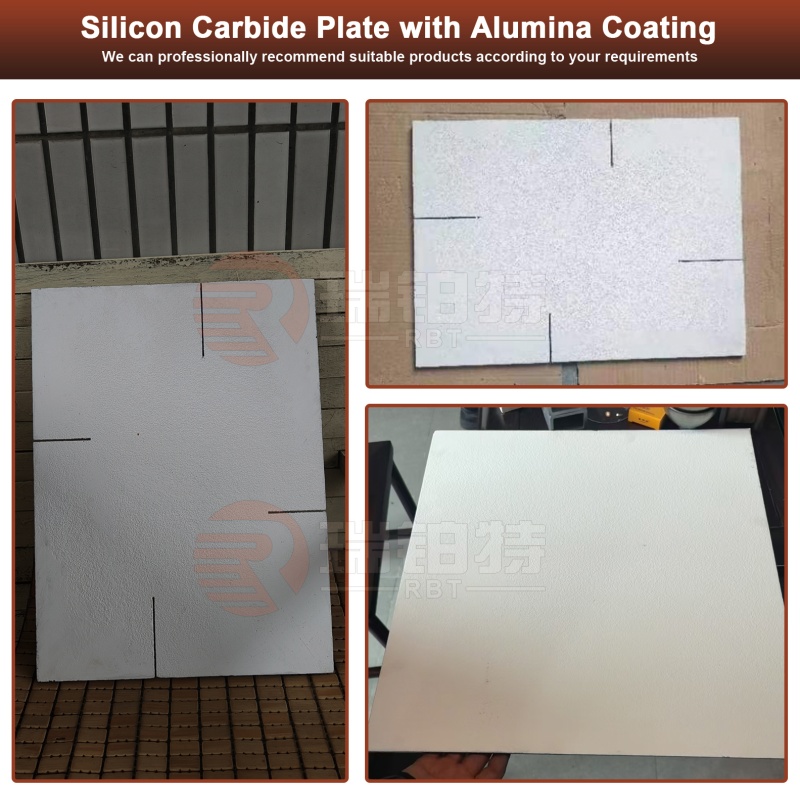

Silicon carbide plate with alumina coating can effectively reduce material wear and extend service life by forming a protective layer of alumina on the surface of silicon carbide. At the same time, the acid and alkali resistance of alumina can block the erosion of silicon carbide by external media and improve the corrosion resistance of the material. In addition, alumina has good insulation properties, which can isolate current or heat conduction and avoid the loss of electrical or thermal properties.
|
Oxide-Bonded Silicon Carbide(OSiC)
|
|
|
Item
|
Data
|
|
SiC
|
90%
|
|
Max Operating Temperature
|
1550℃
|
|
Bulk Density
|
2.6-2.7(g/cm3)
|
|
Silicon Dioxide
|
5-7%
|
|
Cold Bending Strength
|
45Mpa
|
|
1000℃ Thermal Expansion Rate
|
0.42-0.48%
|
|
Apparent Porosity
|
7-8%
|
|
Recrystallized Silicon Carbide(RSiC)
|
|
|
Item
|
Data
|
|
SiC
|
＞99%
|
|
Max Operating Temperature
|
1650℃
|
|
Bulk Density
|
2.65-2.75(g/cm3)
|
|
High-temperature Flexural Strength 1200°C
|
100-110(MPa)
|
|
Room-temperature Flexural Strength 20℃
|
90~100(MPa)
|
|
Hardness 20°C
|
1800~2000(kg/mm2)
|
|
Apparent Porosity
|
<15%
|
|
Fracture Toughness 20°C
|
1.8~2.0(MPa*M1/2)
|
|
Thermal Conductivity 1200°C
|
35~36(W/M.K)
|
|
Coefficient of Thermal Expansion 20-1200°C
|
4.6(1*10-6/°C)
|
|
Thermal Shock Resistance 1200°C
|
Good
|
|
Pressureless Sintered Silicon Carbide(SSiC)
|
|
|
Item
|
Data
|
|
Bulk Density
|
3.10-3.15(g/cm3)
|
|
Hardness
|
≤2600(HV)
|
|
Apparent Porosity
|
<0.2%
|
|
Compressive Strength
|
≥2200MPa
|
|
Flexural Strength
|
≥400MPa
|
|
Purity(SiC Percentage)
|
≥99%
|
|
Elastic Modulus
|
400GPa
|
|
Thermal Conductivity
|
90-110(W/m·k)
|
|
Maximum Temperature
|
1600℃
|
|
Coefficent Of Heat Expansion
|
4.0(10 -6·1/℃)
|
|
Reaction Bonded Silicon Carbide(RBSiC)
|
|
|
Item
|
Data
|
|
SiC
|
80%
|
|
Si
|
≤2600(HV)
|
|
Max Working Temp
|
1380℃
|
|
Bulk Density
|
≥3.02(g/cm3)
|
|
Apparent Porosity
|
＜0.1%
|
|
Flexural Strength
|
250MPa (20℃)
|
|
280MPa (1200℃)
|
|
|
Elastic Modulus
|
330GPa (20℃)
|
|
Thermal Conductivity
|
45(W/m·k) (1000℃)
|
|
Thermal Expansion Coefficient
|
4.5(K-1x10 -6)
|
|
Mohs Hardness
|
9.15
|
|
Acid & alkali resistance
|
Excellent
|
|
Size
|
Weight(kg)
|
Size
|
Weight(kg)
|
Size
|
Weight(kg)
|
|
735x230x16.5
|
7.8
|
590x510x25
|
21
|
500x500x20
|
13.7
|
|
700x600x18
|
21.2
|
590x340x15
|
8.2
|
500x500x15
|
10.5
|
|
700x340x13
|
8.7
|
580x415x14
|
9.2
|
500x500x13
|
9.1
|
|
700x290x13
|
7.4
|
585x375x18
|
11.05
|
500x500x12
|
8.4
|
|
680x580x20
|
22.1
|
580x350x12.8
|
7.3
|
500x480x15
|
10
|
|
660x370x30
|
20.5
|
580x550x20
|
20.5
|
500x480x13
|
8.8
|
|
650x650x25
|
29.5
|
575x450x12
|
8.7
|
500x450x15
|
9.5
|
|
650x220x20
|
8
|
570x570x20
|
18.2
|
500x450x13
|
8.2
|
|
650x320x20
|
11.65
|
570x495x20
|
15.4
|
500x440x15
|
8.8
|
|
650x275x13
|
6.5
|
550x550x13
|
11
|
500x400x20
|
11.2
|
|
640x550x18
|
17.7
|
550x500x15
|
11.5
|
500x400x15
|
8.4
|
|
640x340x13
|
7.9
|
550x500x20
|
15.4
|
500x400x13
|
7.3
|
|
620x420x15
|
10.6
|
550x480x14.5
|
10.65
|
500x400x12
|
6.7
|
|
615x325x20
|
10.7
|
550x450x14
|
9.7
|
500x370x20
|
10.3
|
|
610x450x20
|
15.4
|
550x450x20
|
13.8
|
500x370x15
|
7.8
|
|
600x580x20
|
19.4
|
550x400x13
|
8.1
|
500x370x13
|
6.6
|
|
600x550x15
|
13.8
|
550x370x12
|
6.6
|
500x370x12
|
6.2
|
|
600x500x15
|
12.6
|
540x410x15
|
9.1
|
500x300x13
|
5.5
|
|
600x500x20
|
16.8
|
530x340x13
|
6.6
|
500x230x17
|
5.5
|
|
600x480x15
|
12
|
540x330x13
|
6.5
|
480x460x14
|
8.4
|
|
600x400x13
|
8.7
|
540x240x10
|
3.6
|
480x450x13
|
7.6
|
|
600x400x15
|
10
|
530x540x20
|
15.8
|
480x380x12
|
6.15
|
|
600x400x20
|
13.4
|
530x330x12.5
|
6
|
480x370x12
|
5.95
|
|
600x370x15
|
9.3
|
525x390x14
|
8
|
480x360x12
|
5.8
|
|
600x355x15
|
8.9
|
525x390x12.5
|
7.1
|
480x340x12
|
5.5
|
|
600x300x13
|
6.6
|
520x500x20
|
14.5
|
480x330x12
|
5.3
|
|
520x480x15
|
10.5
|
520x500x15
|
10.9
|
480x300x12
|
4.8
|
|
520x420x15
|
9.1
|
520x500x13
|
9.45
|
480x310x12
|
5
|
|
520x200x13
|
4.2
|
520x480x18
|
12.5
|
480x230x17
|
5.3
|
|
460x440x13
|
7.2
|
460x355x18
|
10.5
|
480x200x15
|
4
|

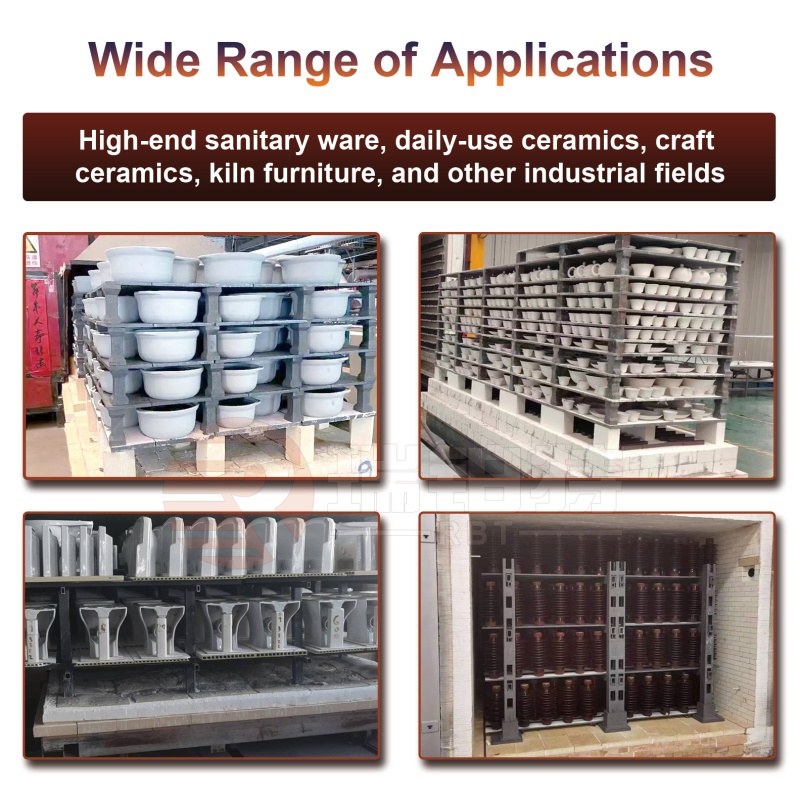

High-end sanitary ware: Silicon carbide refractory plate plays an important role in the firing process of high-end sanitary ware. Its excellent chemical corrosion resistance and high temperature resistance make the fired sanitary ware have higher quality and durability.
Daily ceramics: In the firing of daily ceramics, silicon carbide setter plate can provide a stable sintering environment to ensure the quality and appearance of ceramic products. Its high temperature strength and thermal shock stability make daily ceramics more solid and beautiful.
Craft ceramics: In the firing process of craft ceramics, the application of silicon carbide setter plate can improve the precision and surface smoothness of the product. Its excellent refractory performance and high temperature stability ensure the high-quality production of craft ceramics.
Kiln furniture: Silicon carbide setter plate is also widely used in kiln furniture. Its excellent high temperature bearing capacity and thermal conductivity make the kiln furniture remain stable in high temperature environment, extending the service life of the kiln furniture.
Other industrial applications: Silicon carbide refractory plate is also used in other industrial fields, such as power electronics, photovoltaic power generation, etc. Its high strength, high hardness and high temperature resistance make it stable and durable even in harsh working environments.

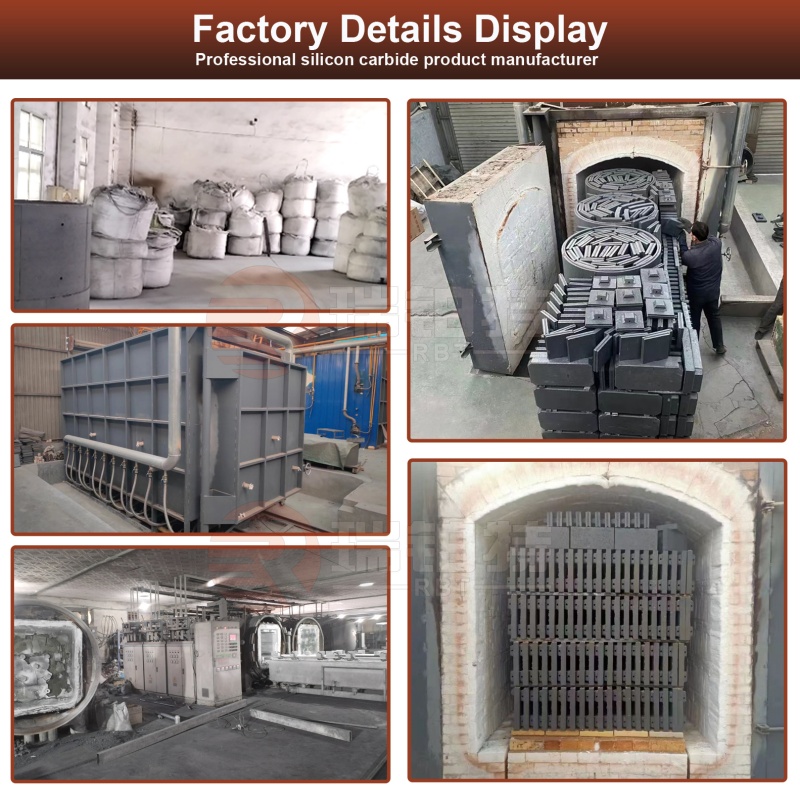

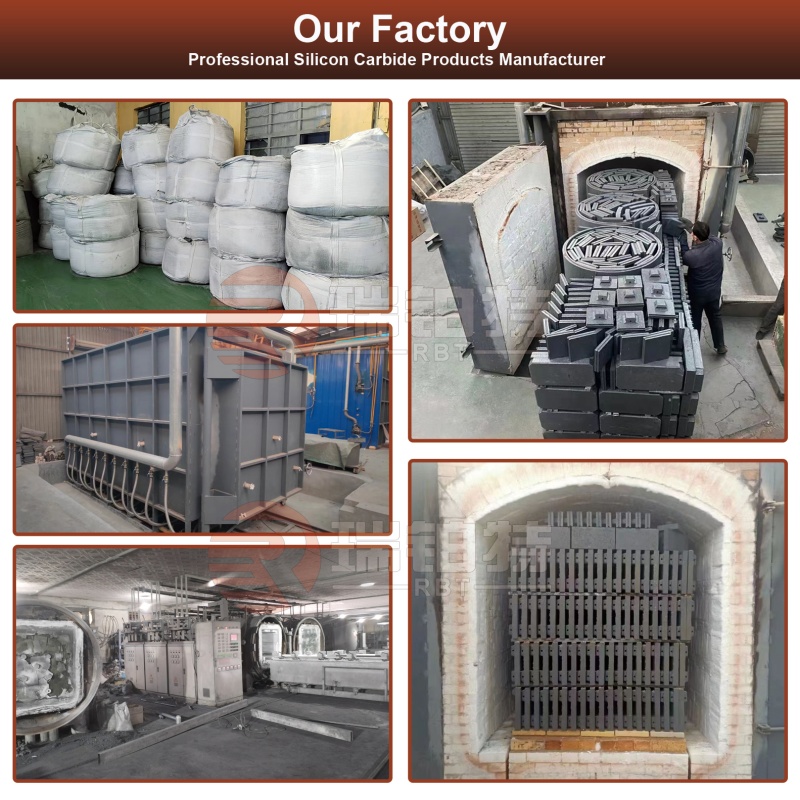

Shandong Robert New Material Co., Ltd. is located in Zibo City, Shandong Province, China, which is a refractory material production base. We are a modern enterprise that integrates the research and development, production, sales, kiln design and construction, technology, and export refractory materials. We have complete equipment, advanced technology, strong technical strength, excellent product quality, and good reputation. Our factory covers over 200 acres and an annual output of shaped refractory materials is approximately 30000 tons and unshaped refractory materials is 12000 tons.
