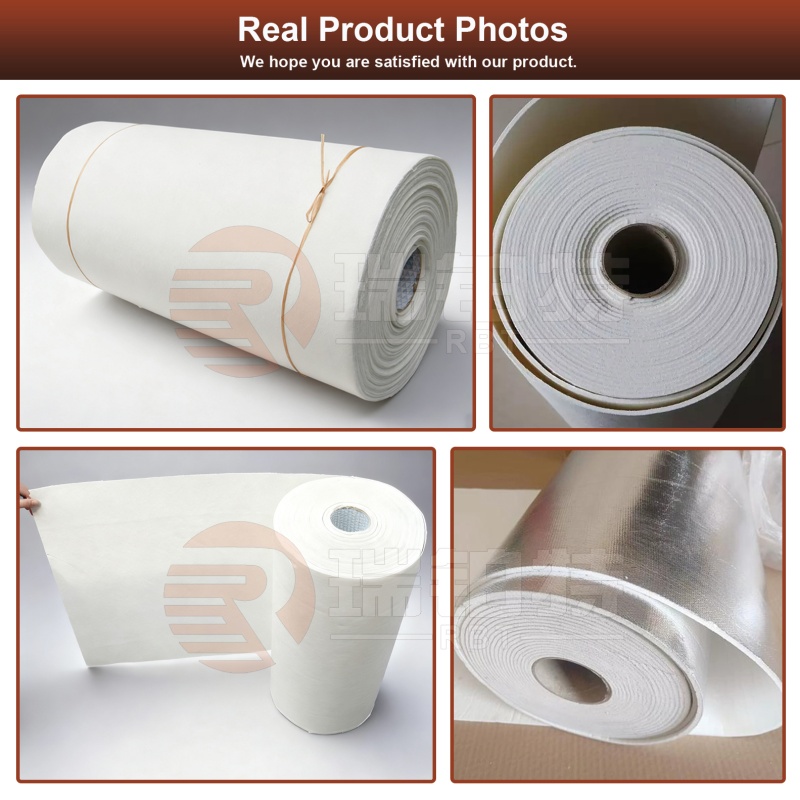

Ceramic Fiber Papers
Ceramic fiber paper is made of selected aluminum silicate ceramic fiber wool as the main raw material using a wet molding process. Based on the traditional process, the slag removal and drying processes have been improved.
Its characteristics are no asbestos, uniform fiber distribution, white color, no stratification, less slag balls (four centrifugal slag removal), flexible adjustment of bulk density according to the purpose, high strength (including reinforced fiber), good elasticity, and strong machinability. Due to different use temperatures, it is divided into four materials: STD, HA, HZ and HAZ ceramic fiber paper.
Specifications
* Service Temperature: Usually between 600°C and 1400°C, and different types have different temperature resistance ranges.
* Bulk Density: Generally 200-240 kg/m³.

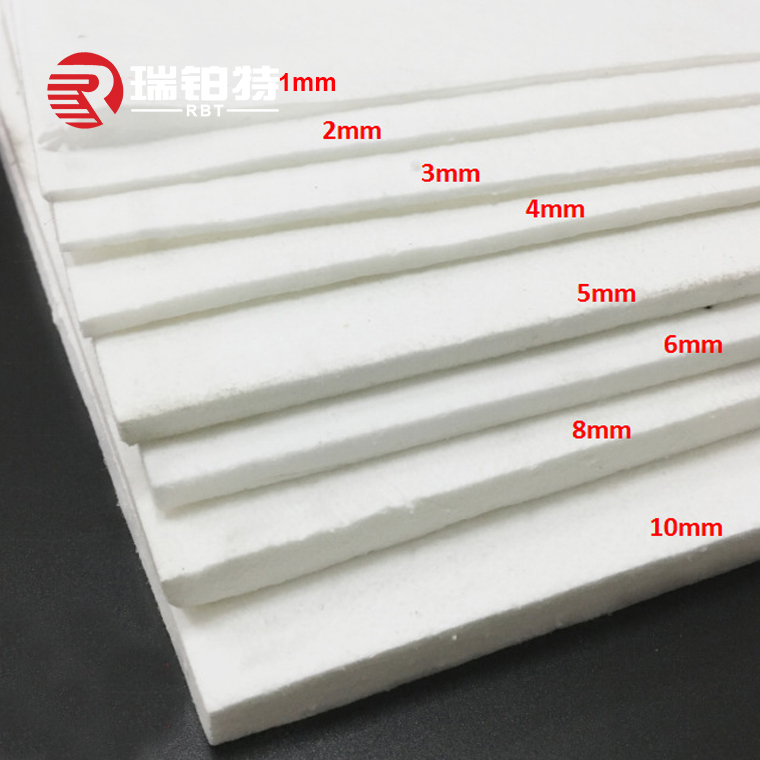

* Dimensions: The width is usually 610mm or 1220mm, the thickness is 0.5-13mm, and the length can be 6-120m or customized according to requirements.
Safety Precautions
When handling ceramic fiber paper, airborne fibers may be generated. It is necessary to wear protective clothing, gloves, and masks and work in a well-ventilated area to minimize exposure.

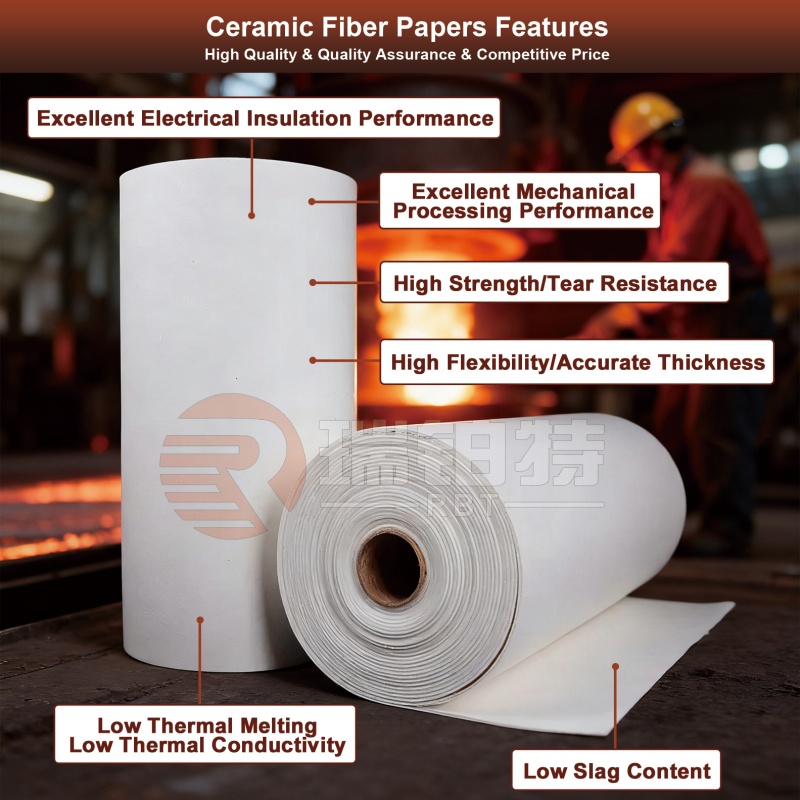

Key Features:
1. Excellent Thermal Insulation: With low thermal conductivity, it can effectively reduce heat transfer, acting as a heat barrier to maintain temperature stability and improve energy efficiency in high-temperature applications.

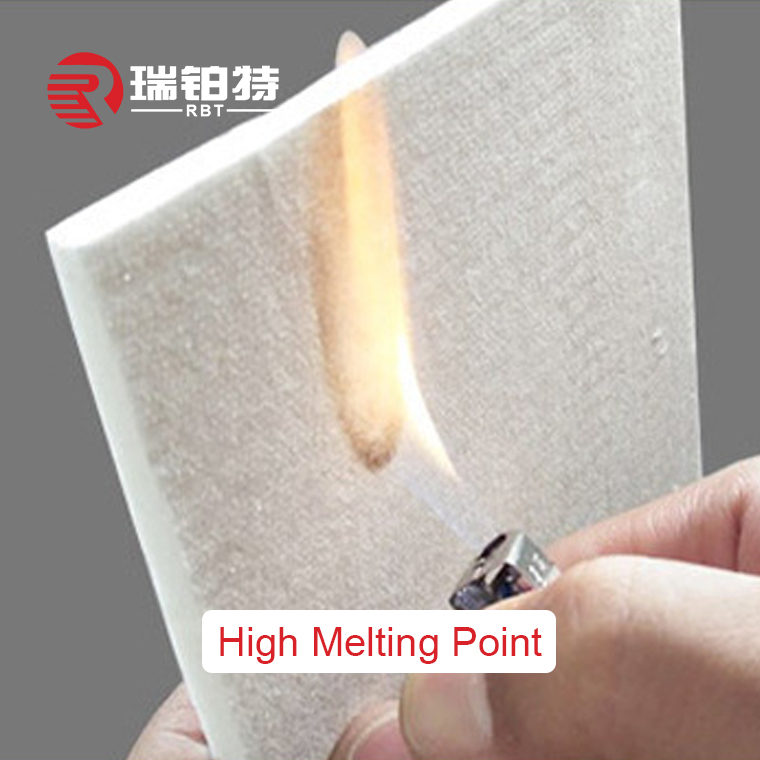

2. High-Temperature Stability: It can withstand high temperatures without melting or deforming. Generally, it can handle temperatures up to 1260°C or even higher, depending on the specific product.
3. Good Flexibility: Ceramic fiber paper is flexible and can be easily cut, folded, and wrapped around complex shapes, making it suitable for insulating irregular or hard-to-reach areas.
4. Thermal Shock Resistance: It has good resistance to thermal shock and can withstand rapid temperature changes without cracking or breaking, which is suitable for applications with thermal cycling, such as combustion chambers or furnace linings.
5. Chemical Stability: It is chemically stable and resistant to most acids, alkalis, and organic solvents, maintaining its integrity and insulation properties in corrosive environments.
6. Electrical Insulation: As a non-conductive material, it has excellent electrical insulation properties and is useful for applications requiring electrical insulation at high temperatures.
|
INDEX
|
STD
|
HA
|
HZ
|
HAZ
|
|
Classification Temperature(℃)
|
1260
|
1360
|
1430
|
1400
|
|
Working Temperature(℃)≤
|
1050
|
1200
|
1350
|
1200
|
|
Bulk Density(kg/m3)
|
200
|
|||
|
Thermal Conductivity(W/m.k)
|
0.086(400℃)
0.120(800℃)
|
0.092(400℃)
0.186(1000℃)
|
0.092(400℃)
0.186(1000℃)
|
0.98(400℃)
0.20(1000℃)
|
|
Permanent Linear Change×24h(%)
|
-3/1000℃
|
-3/1200℃
|
-3/1350℃
|
-3/1400℃
|
|
Modulus of Rupture(MPa)
|
6
|
|||
|
Al2O3(%) ≥
|
45
|
50
|
39
|
39
|
|
Fe2O3(%) ≤
|
1.0
|
0.2
|
0.2
|
0.2
|
|
Al2O3+SiO2(%)≤
|
99
|
99
|
45
|
52
|
|
ZrO2(%) ≥
|
11~13
|
5~7
|
||
|

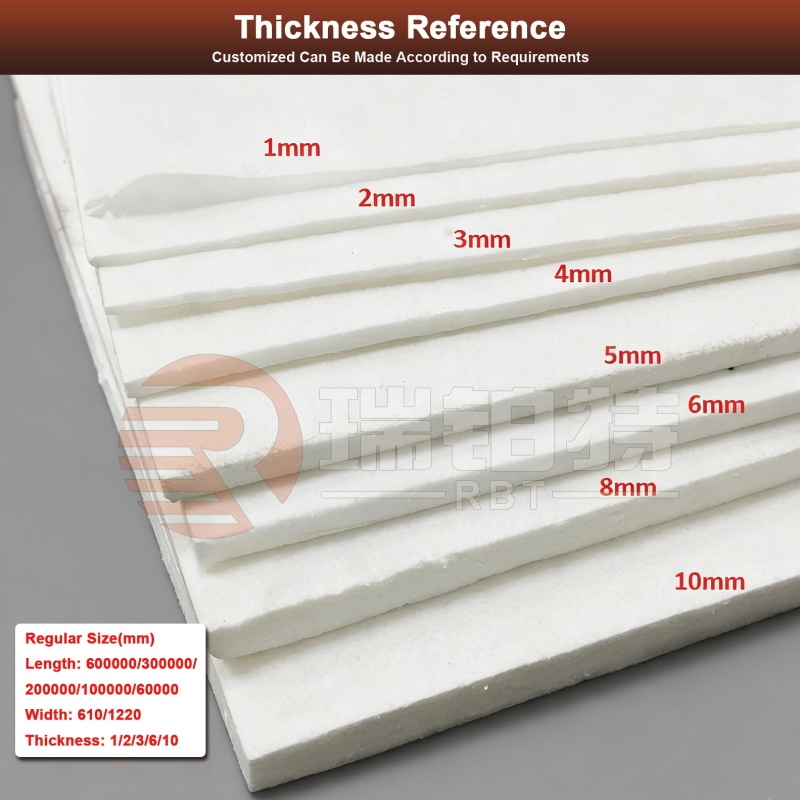

Regular Size(mm)
|
600000/300000/200000/100000/60000*610/1220*1/2/3/6/10
|
|||

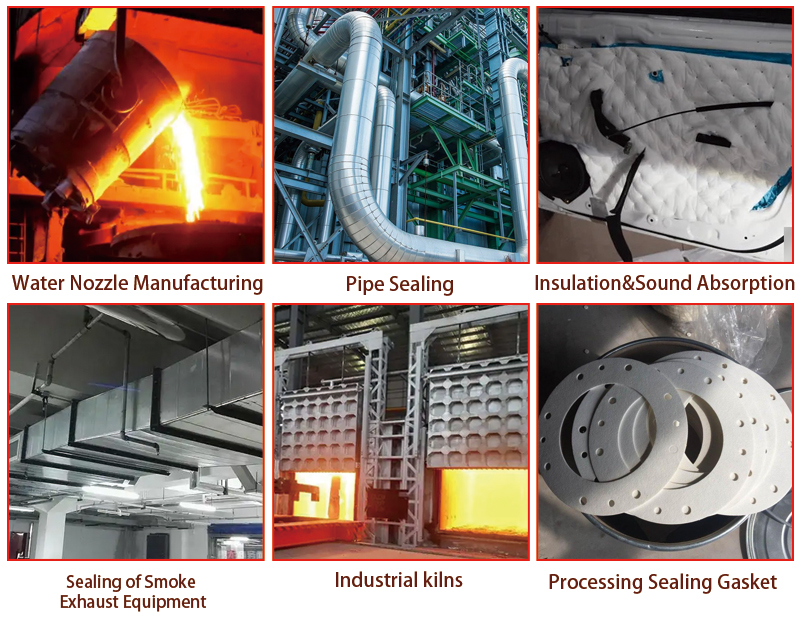

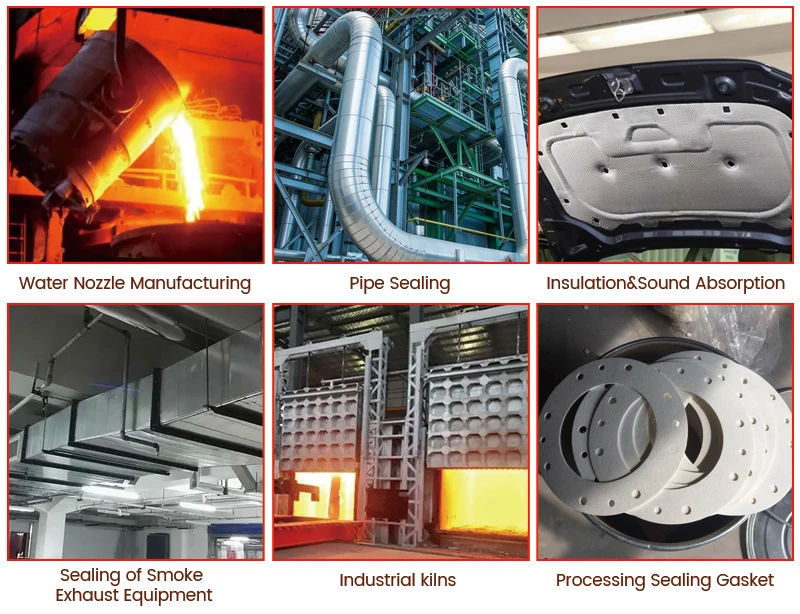

1. Industrial field: industrial insulation, sealing, anti-corrosion materials
2. Daily life: insulation and heat insulation of household appliances and electric heating devices
3. Electrical components: sealing gaskets for various electrical components
4. Water nozzle manufacturing: wrapping and protection of molten steel flow nozzles, plug rods, etc.
5. Science and technology field: thermal insulation and sound absorption of automobile and aerospace industries
6. High-temperature equipment: thermal insulation of warm and hot equipment, furnace doors and furnace expansion joint sealing materials
7. Thermal insulation materials: high-temperature thermal insulation materials for various industrial furnaces and ladles, cast copper, and invasive water nozzles Electrical insulation and thermal insulation materials for industrial electric furnaces
