Fire Clay Bricks

Short Description:

Model: SK32/SK33/SK34
SiO2: 45%~70%
Al2O3: 35%~45%
MgO: 0.20%Max
CaO: 0.2%-0.4%
Fe2O3: 2.0%-2.5%
Refractoriness: Common (1580°< Refractoriness< 1770°)
Refractoriness Under Load@0.2MPa: 1250℃-1350℃
Permanent Linear Change@1400℃*2H: ±0.3%-±0.5%
Cold Crushing Strength: 20~30MPa
Bulk Density: 2.0~2.2g/cm3
Apparent Porosity: 22%~26%
HS Code: 69022000
Applicaiton: Blast Furnace, Hot-blast Stove, Glass Kiln,etc


Product Detail

Product Tags

粘土砖

Product Information

Fireclay bricks belong to one of the main varieties of aluminum silicate products. It is a refractory product made of clay clinker as aggregate and refractory soft clay as binder with Al2O3 content in 35%~45%.

Model: SK32, SK33, SK34, N-1, low porosity series, special series (special for hot blast stove, special for coke oven, etc.)

Features

1. Excellent resistance in slag abrasion
2. Lower impurity content
3. Good cold crush strength
4. Lower thermal line expansion in high temp
5. Good thermal shock resistance performance
6. Good performance in high temp refractoriness under load

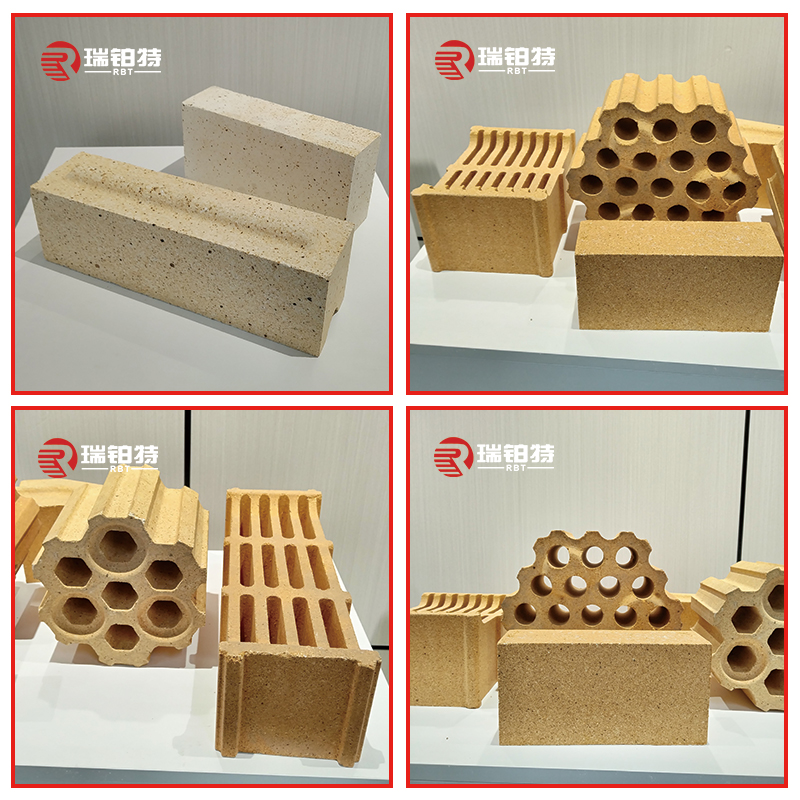

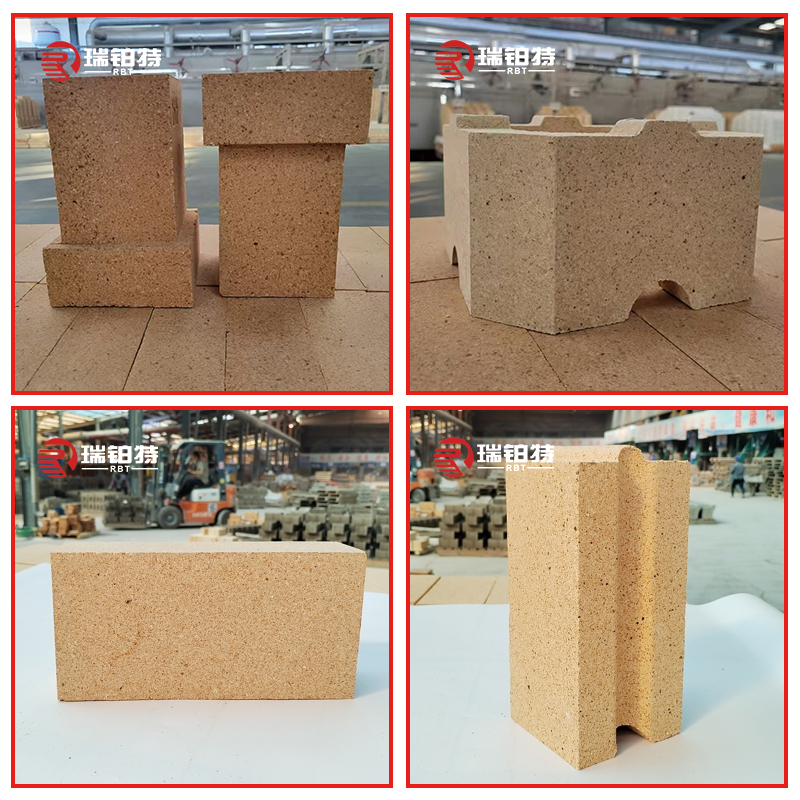

Details Images

Size
Standard size: 230 x 114 x 65 mm, special size and OEM Service also provide!
Shape
Straight bricks, special-shaped bricks, customers' requirement!
粘土砖12

Standard Bricks

粘土格子砖

Checker Bricks (For Coke Oven)

粘土砖楔形砖

Wedge Bricks

46

Shaped Bricks

低气孔粘土砖5

Low Porosity Clay Bricks

粘土格子砖18

Checker Bricks (For Hot Stoves)

粘土砖楔形砖2

Wedge Bricks

18

Octagonal Bricks

Product Index

Fire Clay Bricks Model SK-32 SK-33 SK-34
Refractoriness(℃) ≥ 1710 1730 1750
Bulk Density(g/cm3) ≥ 2.00 2.10 2.20
Apparent Porosity(%) ≤ 26 24 22
Cold Crushing Strength(MPa) ≥ 20 25 30
Permanent Linear Chang@1350°×2h(%) ±0.5 ±0.4 ±0.3
Refractoriness Under Load(℃) ≥ 1250 1300 1350
Al2O3(%) ≥ 32 35 40
Fe2O3(%) ≤ 2.5 2.5 2.0
Low Porosity Clay Bricks Model
DN-12
DN-15
DN-17
Refractoriness(℃) ≥
1750
1750
1750
Bulk Density(g/cm3) ≥
2.35
2.3
2.25
Apparent Porosity(%) ≤
13
15
17
Cold Crushing Strength(MPa) ≥
45
42
35
 Permanent Linear Change@1350°×2h(%)
±0.2
±0.25
±0.3
Refractoriness Under Load@0.2MPa(℃) ≥
1420
1380
1320
Al2O3(%) ≥
45
45
42
Fe2O3(%) ≤
1.5
1.8
2.0

Application

Clay bricks are widely used in blast furnaces, hot blast stoves, glass kilns, soaking furnaces, annealing furnaces, boilers, cast steel systems and other thermal equipment, and are one of the most consumed refractory products.

披萨炉粘土砖
鱼雷罐粘土砖
马蹄玻璃窑炉粘土砖
加热炉粘土砖
麦尔兹石灰窑粘土砖
石灰回转窑粘土砖
浮法玻璃窑炉低气孔粘土砖
矿热炉粘土砖
焦炉用粘土砖
钢包粘土砖

Production Process

详情页_02

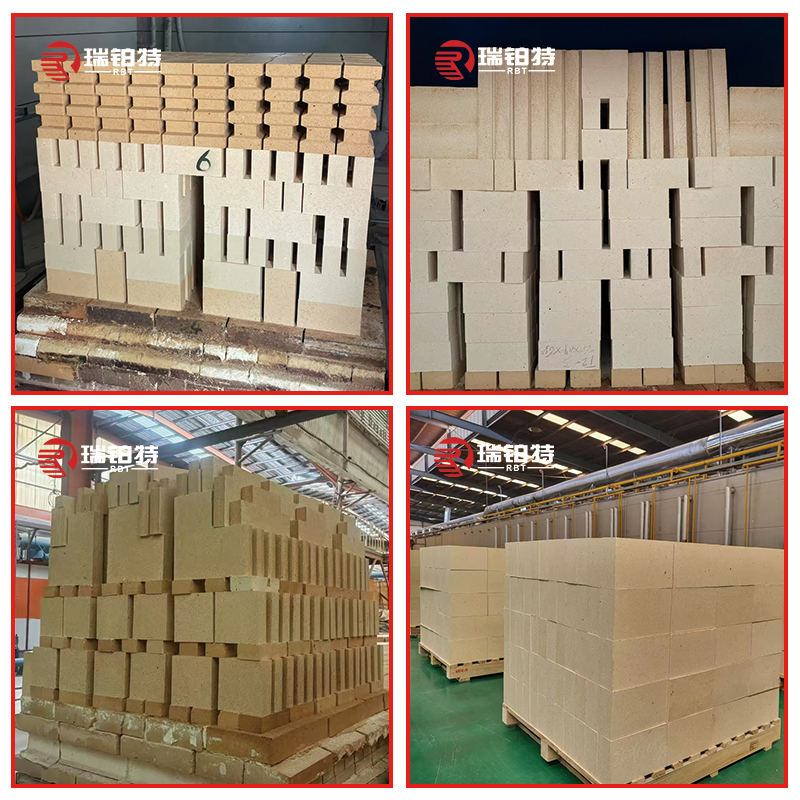

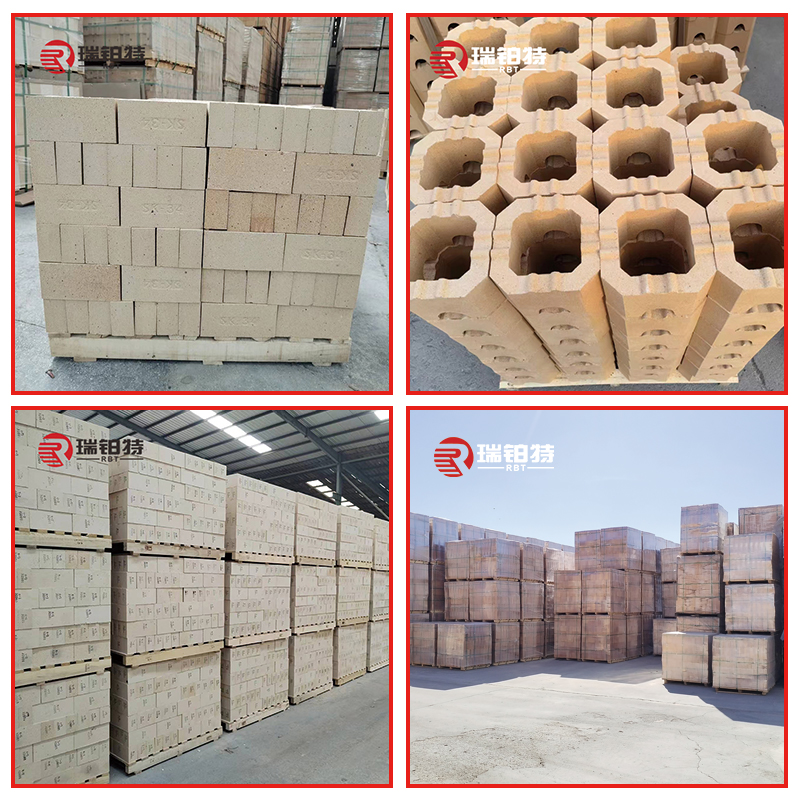

Package&Warehouse

3333
5555
Hb493c9519f1e4189893022353b4148d6L

Company Profile

图层-01
微信截图_20240401132532
微信截图_20240401132649

Shandong Robert New Material Co., Ltd. is located in Zibo City, Shandong Province, China, which is a refractory material production base. We are a modern enterprise that integrates the research and development, production, sales, kiln design and construction, technology, and export refractory materials. We have complete equipment, advanced technology, strong technical strength, excellent product quality, and good reputation. Our factory covers over 200 acres and an annual output of shaped refractory materials is approximately 30000 tons and unshaped refractory materials is 12000 tons.

Our main products of refractory materials include: alkaline refractory materials; aluminum silicon refractory materials; unshaped refractory materials; insulation thermal refractory materials; special refractory materials; functional refractory materials for continuous casting systems.

Robert`s products are widely used in high-temperature kilns such as non-ferrous metals, steel, building materials an construction, chemical, electric power, waste incineration, and hazardous waste treatment. They are also used in steel and iron systems such as ladles, EAF, blast furnaces, converters, coke ovens, hot blast furnaces; non-ferrous metallurgical kilns such as reverberators, reduction furnaces, blast furnaces, and rotary kilns; building materials industrial kilns such as glass kilns, cement kilns, and ceramic kilns; other kilns such as boilers, waste incinerators, roasting furnace, which have achieved good results in using. Our products are exported to Southeast Asia, Central Asia, Middle East, Africa, Europe, Americas and other countries, and has established a good cooperation foundation with multiple well-known steel enterprises. All employees of Robert sincerely look forward to working with you for a win-win situation.
详情页_03

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

Are you a manufacturer or a trader?

We are a real manufacturer, our factory is specialized in producing refractory materials for more than 30 years. We promise to provide the best price, the best pre-sale and after-sale service.

How do you control your quality?

For each production process, RBT has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

What is your delivery time?

Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Do you provide free samples?

Of course, we provide free samples.

Can we visit your company?

Yes, of course, you are welcome to visit RBT company and our products.

What is the MOQ for trial order?

There is no limit, we can provide the best suggestion and solution according to your situation.

Why choose us?

We have been making refractory materials for more than 30 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
