Riser tube (stalk tube) air leakage is one of the hidden but costly problems in low pressure die casting (LPDC). Even tiny cracks or poor flange sealing on nitride bonded silicon carbide (NSiC) riser tubes allows air to enter molten aluminum, triggering a series of reject defects and hurting your foundry yield.
The most typical defect is gas porosity. Incoming air dissolves or becomes trapped inside aluminum, creating scattered round pores inside castings such as automotive wheels and new energy chassis parts. Porosity weakens mechanical strength and causes leakage during pressure testing. Air ingress also creates oxide slag and non-metallic inclusions. Turbulent melt flow from unstable furnace pressure worsens oxidation, leaving dark slag defects on casting surfaces or subsurface. Severe leakage leads to unstable melt lifting, misruns and incomplete mold filling. Fluctuating pressure breaks the stable feeding curve, causing inconsistent casting quality batch by batch.
Many foundries only inspect riser tubes after obvious cracking. Micro leaks often cannot be identified by visual check alone, so regular air tightness testing is essential. Two practical test methods are widely used for NSiC riser tubes. The water immersion bubble test seals both tube ends, fills low-pressure air and submerges the whole tube into water. Bubbles directly mark leak points. Pressure decay test is more suitable for mass inspection. Seal the riser tube, pressurize and hold pressure for a fixed time. If pressure drops beyond the allowed range, the tube is defective. We recommend air tightness inspection before installation and after long production cycles.

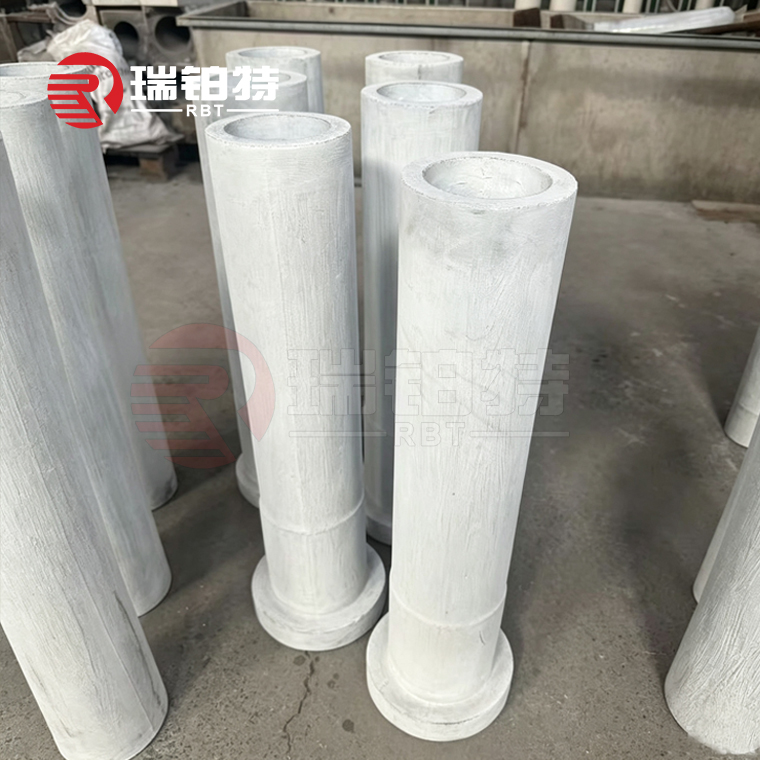

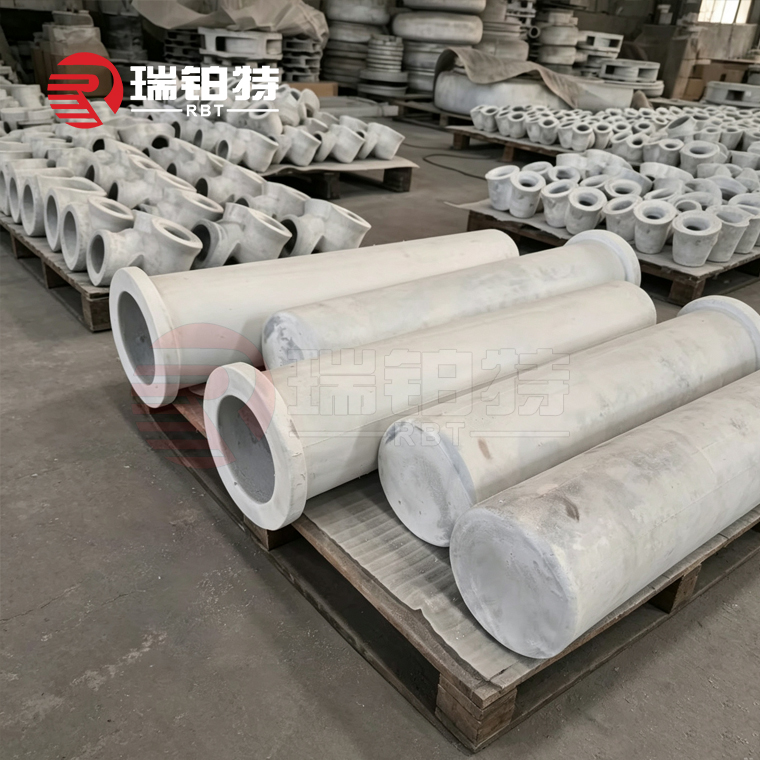

High-quality nitride bonded SiC riser tubes have dense ceramic bodies with excellent air tightness, thermal shock resistance and molten aluminum corrosion resistance, greatly reducing leak-related rejects. Our factory supplies custom NSiC riser tubes with full dimensional customization and pre-delivery air tightness inspection.
If you struggle with porosity or unstable casting yield caused by riser tube leakage, send your drawing and working conditions for a technical proposal and quotation.
FAQ: Riser Tube Leakage & Air Tightness Testing
Q1: Can tiny micro-leaks on NSiC riser tubes be seen by naked eyes?
A: Usually no. Microcracks and sealing gaps are invisible visually. They only allow small air volume into molten aluminum, which slowly creates scattered porosity. Visual inspection alone cannot replace air tightness testing.
Q2: How often should we test the stalk tube for air tightness during mass production?
A: We recommend testing before first installation. For continuous LPDC production, recheck after every major shutdown, thermal shock incident or suspected quality fluctuation.
Q3: Is water immersion test reliable for nitride bonded SiC riser tubes?
A: Yes for routine checking. After water bubble test, fully dry the ceramic tube to eliminate residual moisture. Unremoved water will cause thermal shock cracking once contacting hot aluminum melt.
Q4: Can poor flange sealing cause the same defects as cracked riser tubes?
A: Absolutely. Loose gaskets, deformed flanges or improper installation also bring air ingress. Always check flange gasket together with tube body during inspection.
Q5: Do your NSiC riser tubes pass air tightness test before shipment?
A: Yes. Every customized nitride bonded silicon carbide riser tube undergoes pressure decay air tightness inspection at our factory. We provide test records upon request. Send your technical drawing to get our solution.
