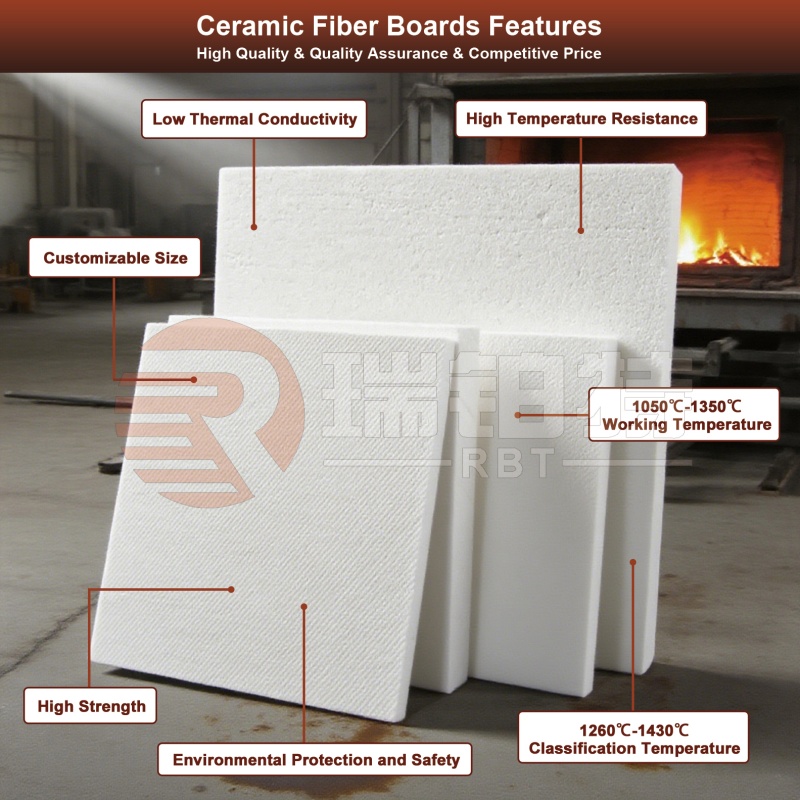

Ceramic Fiber Boards
Ceramic fiber board is a high-performance thermal insulation and refractory material widely used in various industrial fields.
1. Basic Information
Manufacturing Process: Ceramic fiber board is made from ceramic fiber cotton through vacuum forming or dry - process technology. The raw materials mainly include hard clay clinker, pyrophyllite, and alumina - silica powder. These raw materials are heated to a high temperature and melted, and then fiberized by blowing and wire - drawing to form fiber cotton, which is further processed into fiber board.
Color and Appearance: It is usually pure white, with a smooth surface and uniform texture.
Regular Size: 900/1000/1200*600/1000/1200*25/50/100(mm), customized sizes are also available to meet different needs.
Classification: Backing Board; Fire Baffle.
2. Technical Parameters:
Use Temperature: The service temperature can reach 1100℃, and some high - grade products can even withstand higher temperatures up to 1430℃.
Bulk Density: Generally between 260 - 320kg/m³.
Thermal Conductivity: At 1000℃, the thermal conductivity is only 0.18W/m·K, showing excellent thermal insulation performance.
Compressive Strength: It can reach 0.5MPa, with high strength and good toughness.
Features:
1. High temperature resistance: The operating temperature of ceramic fiberboard can reach 1100℃, and it can withstand extremely high temperature environment.
2. Low thermal conductivity: In an environment of 1000℃, the thermal conductivity is only 0.18w/mk, which has a good thermal insulation effect.
3. High strength: After high temperature and processing, ceramic fiberboard has high aging resistance and service life.
4. Easy to install: Due to its fiber structure, ceramic fiberboard can be cut and bent arbitrarily, which is easy to install.
5. Environmental protection and safety: The main raw materials are inorganic materials, which are harmless to the human body and friendly to the environment.
|
INDEX
|
STD
|
HC
|
HA
|
HZ
|
HAZ
|
|
Classification Temperature(℃)
|
1260
|
1260
|
1360
|
1430
|
1400
|
|
Working Temperature(℃) ≤
|
1050
|
1100
|
1200
|
1350
|
1200
|
|
Slag Content(%) ≤
|
13
|
13
|
13
|
10
|
10
|
|
Bulk Density(kg/m3)
|
280~320
|
||||
|
Thermal Conductivity
(W/m.k)
|
0.086
(400℃)
0.120
(800℃)
|
0.086
(400℃)
0.110
(800℃)
|
0.092
(400℃)
0.186
(1000℃)
|
0.092
(400℃)
0.186
(1000℃)
|
0.98
(400℃)
0.20
(1000℃)
|
|
Permanent Linear Change×24h(%）
|
-3/1000℃
|
-3/1100℃
|
-3/1200℃
|
-3/1350℃
|
-3/1400℃
|
|
Modulus of Rupture(MPa)
|
0.2
|
||||
|
Al2O3(%) ≥
|
45
|
45
|
50
|
39
|
39
|
|
Fe2O3(%) ≤
|
1.0
|
0.2
|
0.2
|
0.2
|
0.2
|
|
Al2O3+SiO2(%) ≤
|
99
|
99
|
99
|
84
|
90
|
|
ZrO2(%) ≥
|
|
|
|
11~13
|
5~7
|
1. It is used for backing insulation of kilns in cement and other building materials industries;
2. Kiln backing insulation in petrochemical, metallurgy, ceramics and glass industries;
3. Used for backing insulation of heat treatment kiln;
4. Backing insulation in non-ferrous metal industry;
5. High temperature reaction and heating equipment backing insulation;
6. Suitable for door seals and door curtains of various heat-insulated industrial kilns;
7. High temperature insulation and heat preservation of petrochemical equipment, containers and pipelines;
8. It can be used as heat insulation, fire barrier and automatic fire curtain in important places, such as archives, vaults and office building safes.
Shandong Robert New Material Co., Ltd. is located in Zibo City, Shandong Province, China, which is a refractory material production base. We are a modern enterprise that integrates the research and development, production, sales, kiln design and construction, technology, and export refractory materials. We have complete equipment, advanced technology, strong technical strength, excellent product quality, and good reputation. Our factory covers over 200 acres and an annual output of shaped refractory materials is approximately 30000 tons and unshaped refractory materials is 12000 tons.
Our main products of refractory materials include: alkaline refractory materials; aluminum silicon refractory materials; unshaped refractory materials; insulation thermal refractory materials; special refractory materials; functional refractory materials for continuous casting systems.
