Ceramic Fiber Modules

Short Description:

Color: Pure White
Model: COM/STD/HA/HZ
Classification Temperature: 1050℃-1430℃
Slag Content: 12%-20%
Bulk Density: 200~260g/cm3
Modulus of Rupture: 0.2Mpa
Al2O3: 39%-45%
Fe2O3: 0.2%-1.0%
Al2O3+SiO2: 45%-53%
Regular Size: 300L*300W*300H mm
HS Code: 68061000
Sample: Available





Product Detail

Product Tags

陶瓷纤维模块

Product Information

Ceramic fiber modules are a new type of refractory lining products for simplifying and speeding up the construction of kiln and improving the integrity of furnace lining.

The product is white and regular in size, and can be directly fixed on the anchor nail of the furnace shell of industrial kiln, which has good refractorily and heat insulation effect, improves the integrity of refractorily and heat insulation of kiln.

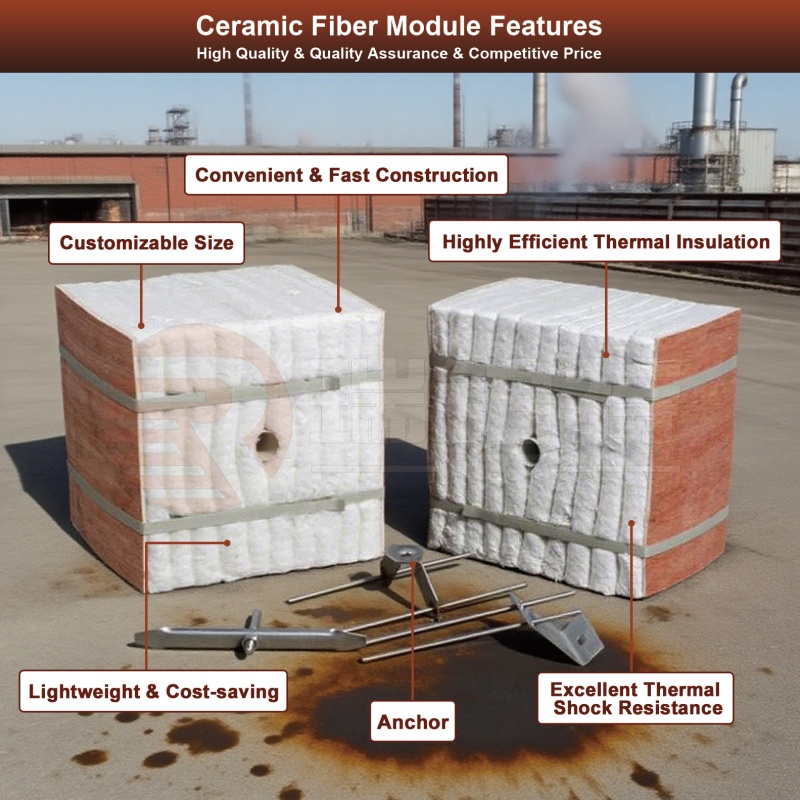

Features

1. Low thermal conductivity, low heat capacity;
2. Excellent thermal stability, thermal shock resistance;
3. Excellent heat flow resistance and high mechanical strength;
4. Excellent elasticity, compensating for the shrinkage of the fiber lining, thereby improving the thermal insulation performance of the fiber lining;
5. Easy and quick installation, built-in anchors, good safety performance.

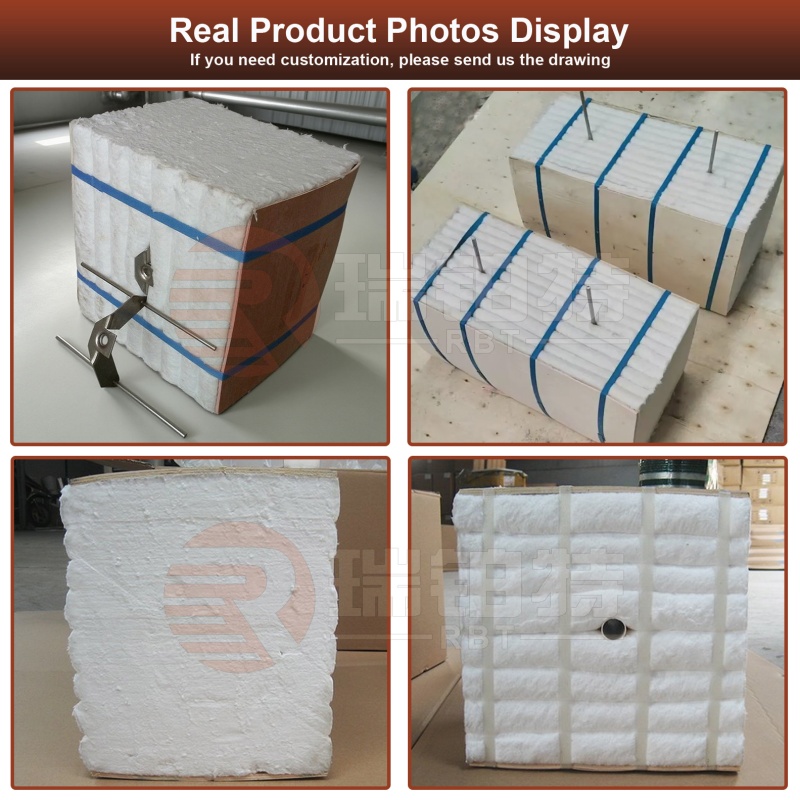

Details Images

31
36

Anchors For Ceramic Fiber Modules

26
32
39

Anchors For Ceramic Fiber Modules

25

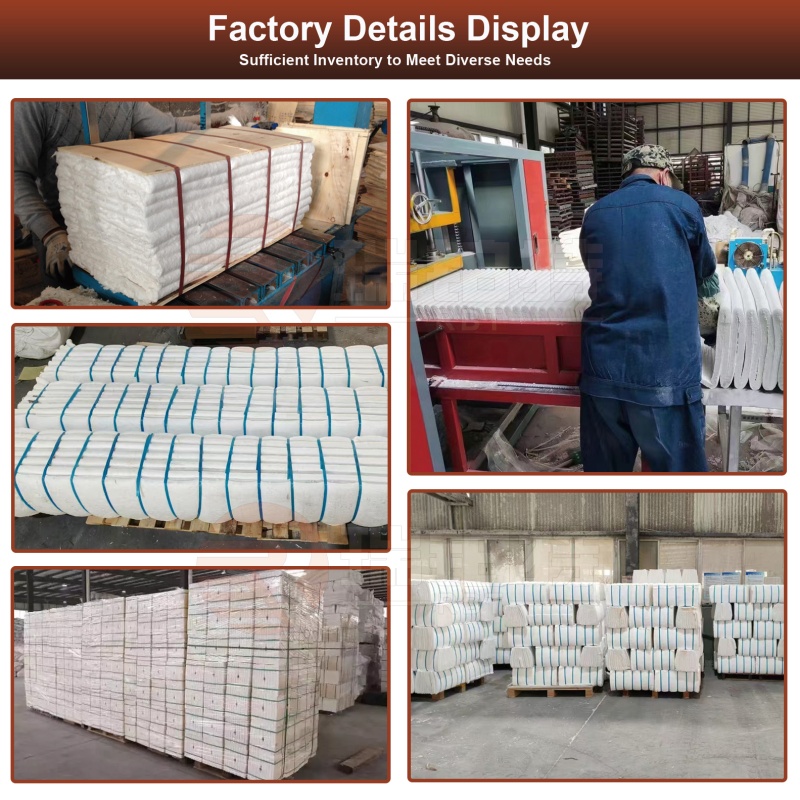

Production Process

The ceramic fiber modules are made of the corresponding fiber blanket by special machining. A certain proportion of compression is maintained in the production process of the module to ensure that after the completion of masonry, the expansion of different directions will be consistent, and squeezing each other into a seamless whole.

11111
33333

Product Index

INDEX
COM
STD
HA
HZ
Classification Temperature(℃)
1050
1260
1360
1430
Slag Content(%) ≤
20
15
15
12
Bulk Density(kg/m3)

200~260
Permanent Linear Change×24h(%)
-4/1000℃
-3/1000℃
-3/1200℃
-3/1350℃
Al2O3(%) ≥
44
45
50
39
Fe2O3(%) ≤
1.0
1.0
0.2
0.2
SiO2(%) ≤
53
52
49
45
ZrO2(%) ≥



15
Regular Size(mm)
300L*300W*300H

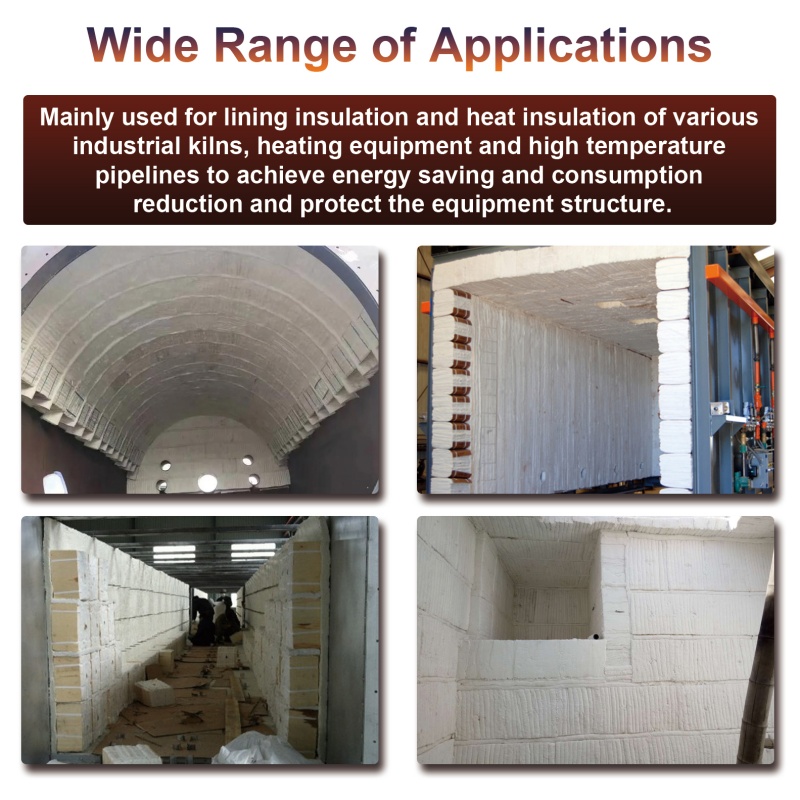

Application

1. Various heating furnaces for metallurgical iron and steel, ladle covers, annealing furnaces, bell furnaces;

2. Ceramic shuttle kilns, horseshoe kilns, tunnel kilns and other ceramic kilns, kiln cars, kiln doors; energy-saving red brick kilns, shale brick kilns, etc.;

3. Petrochemical cracking furnace, reformer, atmospheric and vacuum furnace, coking furnace, flue;

4. Other types of industrial furnaces, such as soaking furnaces, crucible furnaces, resistance furnaces and other high-temperature thermal equipment.

18_副本

Package&Warehouse

1. Inner plastic bag and carton outside;
2. Inner plastic bag and packed on pallets;
3. Inner plastic bag and carton outside, after will be packed on pallets.

19
21
38
37
