Sillimanite Bricks
Sillimanite brick is made from natural sillimanite (Al₂SiO₅, theoretical Al₂O₃ content 62.9%) through batching, forming and high-temperature sintering. Its core characteristic is that sillimanite undergoes mullitization phase transformation at high temperature (1300-1500℃), accompanied by moderate volume expansion (2%-3%), which can offset the sintering shrinkage of the brick body, making the brick body denser and better sealed. Its refractoriness is 1770-1830℃, which is especially suitable for medium and high-temperature working conditions with large temperature fluctuations and chemical corrosion, with outstanding cost performance.
Product Classification:
1. Ordinary Sillimanite Brick: Natural sillimanite (Al₂O₃ 60%-62%) + bauxite/clay, conventional sintering. Moderate porosity, good thermal shock, low cost; for conventional high-temp, frequent temp fluctuation (blast furnace throat, ceramic kiln furniture).
2. High-Purity Sillimanite Brick: High-purity natural sillimanite (Al₂O₃ 62%-65%), Fe₂O₃≤0.3%, 1580-1650℃ sintering. Denser, better alkali/corrosion resistance; for slight chemical corrosion (glass kilns, non-ferrous smelting furnaces).
3. Sillimanite-Mullite Composite Brick: Sillimanite + mullite, phase transformation self-densification + high-temp stability. Al₂O₃ 63%-68%, balances thermal shock/creep resistance; for large temp fluctuation, high-temp load-bearing (blast furnace bottom, glass flow channel).

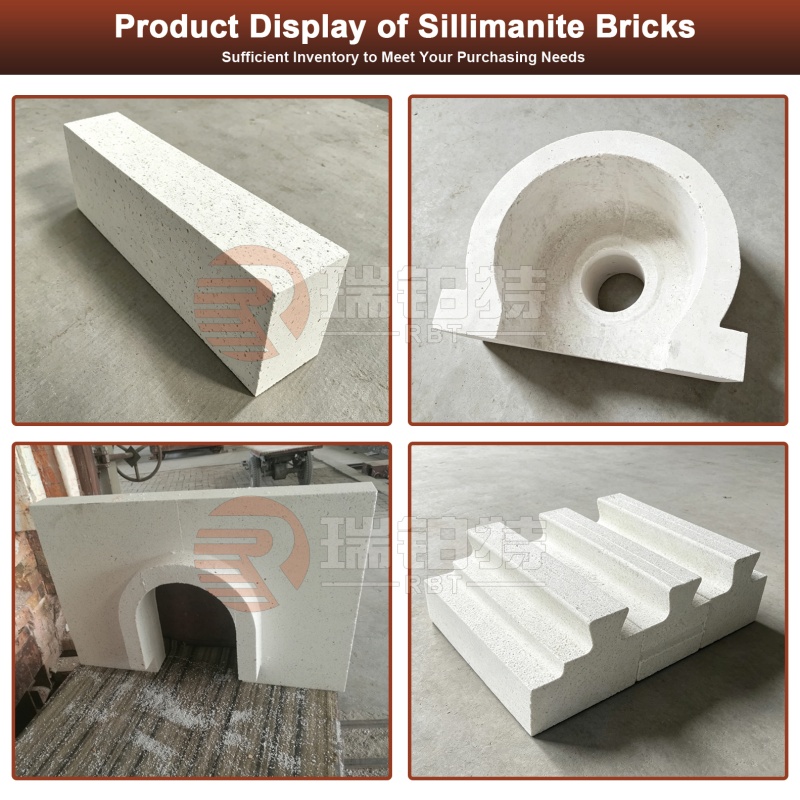

Sillimanite brick products: Channel brick, flow trough, rotary pipe, feed basin, orifice ring, stirring paddle, punch, feed cylinder, fire block slag brick, damper block, arch brick, feed basin cover, through-hole brick, burner brick, beam, cover brick and other varieties and specifications.
Core Advantages:
1. Phase Transformation Self-Densification: High-temperature mullitization expansion offsets shrinkage, ensuring high compactness and good sealing.
2. Balanced Thermal Stability: Low thermal expansion, excellent thermal shock/abrasion resistance, suitable for frequent temperature changes.
3. High Cost-Effectiveness: Natural sillimanite raw material, lower cost than mullite bricks, suitable for cost-sensitive scenarios.
4. Excellent Slag Resistance: Resistant to slag/glass liquid corrosion and high-temperature wear, not easy to peel off.
5. Natural & Eco-Friendly: No harmful impurities, little material pollution, suitable for eco-friendly kilns.
|
INDEX |
RBTA-60 |
|
Refractoriness(℃) ≥ |
1790 |
|
Bulk Density(g/cm3) ≥ |
2.48 |
|
Apparent Porosity(%) ≤ |
18 |
|
Cold Crushing Strength(MPa) |
65 |
|
Refractoriness Under Load(℃) @0.2MPa ≥ |
1600 |
|
Al2O3(%) ≥ |
60 |
|
Fe2O3(%) ≤ |
1.0 |
1. Metallurgical Industry: Blast furnace bottom protection brick, furnace throat lining, iron outlet area, medium and low temperature zone of hot blast stove;
2. Glass Industry: Working pool side wall, flow channel, channel brick and regenerator checker brick of glass melting furnace;
3. Ceramic Industry: Firing zone of ceramic kiln, kiln furniture (saggar, shelf), tunnel kiln lining;
4. Chemical Industry: Non-ferrous metal smelting furnace lining, high-temperature roasting furnace, sulfuric acid roasting furnace;
5. Other Fields: High-temperature section of waste incinerator, cement kiln preheater lining (suitable for ordinary type).
Frequently Asked Questions
Need help? Be sure to visit our support forums for answers to your questions!
We are a real manufacturer, our factory is specialized in producing refractory materials for more than 30 years. We promise to provide the best price, the best pre-sale and after-sale service.
For each production process, RBT has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.
Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.
Of course, we provide free samples.
Yes, of course, you are welcome to visit RBT company and our products.
There is no limit, we can provide the best suggestion and solution according to your situation.
We have been making refractory materials for more than 30 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
